T.O.C
1. A recommended tool to lock balanced turbine bolts
2. A little list of Cars and Turbos
3. A little list of compressors
4. A little list of turbines
5. A little collection of exploded turbo views
6. A little collection of turbo maps

A recommended tool to lock balanced turbine bolts
This tool is almost a must! solves the problem of disfigured/grinded balanced turbinebolts, I got two!



 A little list of cars and turbos
This list is far from complete, I got over 2000 more rows to put in... Keep coming back!
When I'm finished almost every make, model of a turbo car will be here!
Make Model Engine size Year Turbo model Turbo
make
ALFA 145 1.9 00-01 GT1749V GAR
ALFA 145/146-105hk 1.9 99- GT1544H GAR
ALFA 146 2.0 99-01 RHB52R IHI
ALFA 146 JTD - 105HP 1.9 99-01 GT1544H GAR
ALFA 146 JTD 1.9 00-01 GT1749V GAR
ALFA 147 JTD - 115HP 1.9 02- GT1749V GAR
ALFA 147 JTD - 140HP 1.9 02- GT1749V GAR
ALFA 155 16V 2.0 92-96 TB0367 GAR
ALFA 155 2.0 92- TB0367 GAR
ALFA 155 2.0 93- RHB5 IHI
ALFA 156 2.4 99- TD2503VNT GAR
ALFA 156 JTD - 115HP 1.9 00- GT1749V GAR
ALFA 156 JTD - 136HP 2.4 01- GT2256V GAR
ALFA 156 JTD - 136HP 2.4 98-01 TD2503 GAR
ALFA 156 JTD - 136HP 2.4 98-01 TD2503 GAR
ALFA 156 JTD - 140HP 1.9 02- GT1749V GAR
ALFA 156 JTD - 175HP 2.4 03- GT2256V GAR
ALFA 156 JTD 2.4 01- GT2256V GAR
ALFA 156-105hk 1.9 99- GT1544H GAR
ALFA 156-136hk 2.4 97- TD2503VNT GAR
ALFA-S ... .. .. .. ..
SAAB 9-3 Aero 2.0 99- TD04HL MHI
SAAB 9-3 Viggen 2.3 99- TD04HL-15G MHI
SAAB 9-5 Aero 2.3 99- TD04HL-15G MHI
SAAB 9-3 16V 192 2.0 00- TB2569 GAR
SAAB 9-3 185 2.0 01- GT1752S GAR
SAAB 9-3 175 2.0 02- GT1752S GAR
SAAB 9-3 Aero 2.0 99- TB2569 GAR
SAAB 9-3 TiD 2.0 99- GT15S GAR
SAAB 9-5 185 HP 2.0 01- GT1752S GAR
SAAB 9-5 2.3 01- GT1752S GAR
SAAB 9-5 175 2.0 02- GT2082ELS GAR
SAAB 9-5 150 LPT 2.0 97- GT1752S GAR
SAAB 9-5 170 LPT 2.3 97- GT1752S GAR
SAAB 9-5 150 LPT 2.0 99- GT1752S GAR
SAAB 9-5 170 LPT 2.3 99- GT1752S GAR
SAAB 9-5 V6 3.0 00- GT1549 GAR
SAAB 9-5 V6 3.0 02- GT1549 GAR
SAAB 9-5 V6 3.0 97- GT1549 GAR
SAAB 900 16V - 175HP 2.0 89-94 TB0382 GAR
SAAB 900 16V - 185HP 2.0 89-94 TB0382 GAR
SAAB 900 16V 175hk 2.0 89- TB0382 GAR
SAAB 900 16V 185hk 2.0 89- TB0382 GAR
SAAB 900 16V 2.0 84-87 TB0339 GAR
SAAB 900 16V 2.0 87-89 TB0357 GAR
SAAB 900 16V 2.0 83-86 TB0339 GAR
SAAB 900 16V 2.0 87- TB0357 GAR
SAAB 900 16V 2.0 91-93 TE05-12B6 MHI
SAAB 900 2.0 94- TB2569 GAR
SAAB 900 2.0 97- TB2569 GAR
SAAB 900 16V S LPT 2.0 87- TE05-12B6 MHI
SAAB 900 2.0 87-90 TE05-12B6 MHI
SAAB 900 2.0 87-91 TE05-12B6 MHI
SAAB 900 2.0 91-94 TE05-12B6 MHI
SAAB 900 2.0 94-99 T25 GAR
SAAB 900 2.0 94-99 TB2525 GAR
SAAB 900 Diesel 2.2 98-99 GT15S GAR
SAAB 900 8V 2.0 81- TB0312 GAR
SAAB 900 8V 2.0 81- TB0312 GAR
SAAB 900 8V 2.0 87-90 TE05-12B6 MHI
SAAB 900 8V 2.0 87-90 TE05-12B6 MHI
SAAB 900 APC 2.0 87-90 TB0321 GAR
SAAB 900 APC 2.0 87-90 TB0358 GAR
SAAB 900 APC 2.0 82- TB0321 GAR
SAAB 900 APC 2.0 86- TB0321 GAR
SAAB 900 APC 2.0 87- TB0321 GAR
SAAB 900 TD 2.2 98- GT1549S GAR
SAAB 9000 16V - 175HP 2.0 87-90 TB0356 GAR
SAAB 9000 16V - 175HP CAT 2.3 93-98 TB2531 GAR
SAAB 9000 16V - 185HP 2.0 90-97 TB2529 GAR
SAAB 9000 16V - 185HP 2.3 90-98 TB2531 GAR
SAAB 9000 16V - 200HP 2.3 90-98 TB2531 GAR
SAAB 9000 16V 2.0 84-86 TB0343 GAR
SAAB 9000 16V 2.0 86-87 TB0356 GAR
SAAB 9000 16V 2.0 86-87 TB0356 GAR
SAAB 9000 16V 2.0 87-90 TE05-12B6 MHI
SAAB 9000 2.0 94-98 TB25 GAR
SAAB 9000 2.3 94-98 TB25 GAR
SAAB 9000 2.0 84- TB0343 GAR
SAAB 9000 2.0 87- TB0356 GAR
SAAB 9000 2.0 87- TE05-12B6 MHI
SAAB 9000 2.0 90- TB2529 GAR
SAAB 9000 2.3 90- TB2531 GAR
SAAB 9000 2.3 90- TB2531 GAR
SAAB 9000 2.3 93- TB2531 GAR
SAAB 9000 2.0 94- TB25 GAR
SAAB 9000 2.3 94- TB25 GAR
SAAB 9000 Aero 2.3 93-98 TD04HL-15G-6 MHI
SAAB 9000 Aero 2.3 93-98 TD04HL-15T-6 MHI
SAAB 9000 Aero 2.3 93-98 TD04HL-15G-6 MHI
SAAB 9000 Aero 2.3 94-98 TD04HL-15T-6 MHI
SAAB 9-3 175hp 2.0 02- GT2082ELS GAR
SAAB 9-3 210hp 2.0 02- TD04 MHI
SAAB 9-3 2.0 99- TB2569 GAR
SAAB 9-3 HC TDI 2.2 99-01 GT1549 GAR
SAAB 9-3 HC TDI 2.2 01- GT1849V GAR
SAAB 9-3 TiD 2.2 01- GT1849V GAR
SAAB 9-5 150HP 2.0 97-02 GT1752 GAR
SAAB 9-5 170HP 2.3 97- GT1752 GAR
SAAB 9-5 175HP 2.0 02- GT2082ELS GAR
SAAB 9-5 200HP 3.0 01- GT1549 GAR
SAAB 9-5 200HP 3.0 97- GT1549 GAR
SAAB 9-5 TiD 176HP 3.0 02- GT2559V GAR
SAAB 99/900 2.0 78- TC0301 GAR
S-W ... .. .. .. ..


A little list of compressors
Turbo Compressor Trim Inducer (in) Exducer (in) Inducer (mm) Exducer (mm)
GAR T3 35 1,396 2,367 35,46 60,12
GAR T3 40 1,484 2,367 37,69 60,12
GAR T3 45 1,595 2,367 40,51 60,12
GAR T3 50 1,674 2,367 42,52 60,12
GAR T3 55 1,760 2,367 44,70 60,12
GAR T3 60 1,830 2,367 46,48 60,12
GAR T3 SUPER 60 1,900 2,367 48,26 60,12
GAR T04B S 1,904 2,750 48,36 69,85
GAR T04B SUPER-S 1,904 3,000 48,36 76,20
GAR T04B T5/6 2,032 2,750 51,61 69,85
GAR T04B V 2,180 2,750 55,37 69,85
GAR T04B SUPER-V 2,180 3,000 55,37 76,20
GAR T04B H 2,298 2,750 58,37 69,85
GAR T04B SUPER-H 2,298 3,000 58,37 76,20
GAR T04B 60-1 HI-FI 2,324 3,000 59,03 76,20
GAR T04B 60-2 HI-FI 2,441 3,000 62,00 76,20
GAR TO4E 40 1,870 2,950 47,50 74,93
GAR TO4E 46 2,003 2,950 50,88 74,93
GAR TO4E 50 2,122 3,000 53,90 76,20
GAR TO4E 54 2,170 2,950 55,12 74,93
GAR TO4E 57 2,230 2,950 56,64 74,93
GAR TO4E 60 2,290 2,950 58,17 74,93

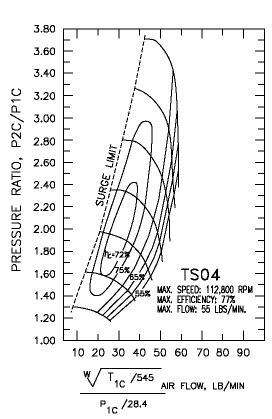

GAR TS04   2,300 3,304 58,42 83,92
GAR T-61   2,382 3,544 60,50 90,02
GAR T-64   2,490 3,670 63,25 93,22
GAR T-66   2,580 3,584 65,53 91,03
GAR T-70   2,720 3,850 69,09 97,79
GAR T-72   2,840 4,030 72,14 102,36
GAR T-76   3,020 4,030 76,71 102,36

MHI 9B 50 1,365 1,930 34,67 49,02
MHI 11B   1,459 1,929 37,05 49,00
MHI 11G   1,495 1,929 49,00 37,97
MHI 12T   1,489 1,929 37,81 49,00
MHI 13G 62 1,580 2,000 40,13 50,80
MHI 13C   1,571 2,086 39,90 52,99
MHI 13G   1,634 2,205 41,50 56,00
MHI 13T 53 1,600 2,205 40,64 56,01
MHI 14B 55 1,695 2,285 43,05 58,04
MHI 14G 62 1,800 2,285 45,72 58,04
MHI 15G   1,707 2,205 43,37 56,01
MHI 15T   1,654 2,205 42,00 56,01
MHI 15C   1,638 2,165 41,61 54,99
MHI 15C 57 1,654 2,187 42,01 55,55
MHI 15G 55 1,625 2,187 41,28 55,55
MHI 16G   1,814 2,223 46,08 56,46
MHI 16G 60 (small) 1,830 2,365 46,48 60,07
MHI 16G 50 (large) 1,892 2,680 48,06 68,07
MHI 16T 60 1,713 2,205 43,51 56,01
MHI 17G 54 1,744 2,382 44,30 60,50
MHI 17G 54 1,744 2,382 44,30 60,50
MHI 18A 50 1,900 2,680 48,26 68,07
MHI 18G   1,970 2,652 50,04 67,36
MHI 18G 55 1,992 2,680 50,60 68,07
MHI 20G   2,051 2,652 52,10 67,36
MHI 20G 60 2,070 2,680 52,58 68,07

GT25 TO4S 48 2,090 3,000 53,09 76,20
GT25 GT35 48 1,940 2,800 49,28 71,12
GT25 GT35 56 2,090 2,800 53,09 71,12
GT25 T3 60 1,830 2,360 46,48 59,94
GT25 T3 63 1,880 2,360 47,75 59,94
GT25 T25 70 1,690 2,020 42,93 51,31
GT2510 T3 63 1,860 2,344 47,24 59,54
GT2530 T3 63 1,860 2,344 47,24 59,54
GT2540   46 2,016 2,972 51,21 75,49
GT2835   48 1,923 2,773 48,84 70,43
GT2835   52 1,997 2,773 50,72 70,43
GT2835   56 2,071 2,773 52,60 70,43
GT2835R   56 2,071 2,773 52,60 70,43
GT30 TO4S 56 2,250 3,000 57,15 76,20
GT30 TO4S 48 2,060 3,000 52,32 76,20
GT30 TO4S 52 2,170 3,000 55,12 76,20
GT30 TO4S 56 2,240 3,000 56,90 76,20
GT30 TO4S 60 2,320 3,220 58,93 81,79
GT3037   48 2,059 2,972 52,30 75,49
GT3037   52 2,145 2,972 54,48 75,49
GT3037   56 2,223 2,972 56,46 75,49
GT3040   50 2,262 3,198 57,45 81,23
GT3240   54 2,352 3,198 59,74 81,23
GT347 MHI 13C 57 1,580 2,087 40,13 53,01
GT35   52 2,016 2,795 51,21 70,99
GT35   54 2,157 2,997 54,79 76,12
GT357 Magnum T3 50 1,674 2,367 42,52 60,12
GT368SX T3 60 1,830 2,367 46,48 60,12
GT37   52 2,157 2,992 54,79 76,00
GT37     2,327 3,228 59,11 81,99
GT40   50 2,283 3,228 57,99 81,99
GT40   54 2,547 3,465 64,69 88,01
GT42   53 2,925 4,016 74,30 102,01
GT42 53-Trim GT42 53 2,924 4,016 74,27 102,01
GT42 56-Trim GT42 56 2,769 3,700 70,33 93,98
GTRS   52 1,997 2,773 50,72 70,43
HKS GT2835 custom GT35 56 2,092 2,795 53,14 70,99
HKS T04E 57 2,196 2,925 55,78 74,30
HKS T04R 63 2,601 3,276 66,07 83,21
HKS T04R/GT63 GT63 2,626 3,307 66,70 84,00
HKS T04S 60 2,301 2,972 58,45 75,49
HKS T51 KAI 56 2,742 3,666 69,65 93,12
HKS T51 SPL 56 2,984 3,986 75,79 101,24
RHF5 F5 58 1,812 2,375 46,02 60,33
T25 T3 60 1,830 2,370 46,48 60,20
T-78 GREDDY   2,598 3,543 65,99 89,99
T-88 GREDDY 33D 2,598 3,543 65,99 89,99
T-88 GREDDY 34D 2,744 3,740 69,70 95,00
TB02 T2 22 1,560 1,989 39,62 50,52

A little list of turbines
Turbo Turbine Trim Inducer (in) Exducer (in) Inducer (mm) Exducer (mm)
GAR T3 Stock 1,898 2,319 48,21 58,90
GAR T3 Stage 2 2,122 2,559 53,90 65,00
GAR T3 Stage 3 2,229 2,559 56,62 65,00
GAR T4 N 2,071 2,922 52,60 74,22
GAR T4 O 2,296 2,922 58,32 74,22
GAR T4 P 2,544 2,922 64,62 74,22
GAR T4 Q 2,693 3,111 68,40 79,02

MHI TD04   1,550 1,860 39,37 47,24
MHI TD04 H 1,735 2,042 44,07 51,87
MHI TD04 HL 1,795 2,047 45,60 52,00
MHI TD04 L 1,622 1,843 41,20 46,80
MHI TE04 H 1,882 2,008 47,80 51,00
MHI TD05 H 1,930 2,200 49,02 55,88
MHI TD05   1,911 2,184 48,54 55,47
MHI TD05 H 1,930 2,200 49,02 55,88
MHI TD06   2,149 2,535 54,58 64,39

AAM GT30R TD05 H 1,930 2,200 49,02 55,88
GT2510   62 1,626 2,067 41,30 52,50
GT2530   76 1,883 2,098 47,83 53,29
GT2835   84 2,020 2,204 51,31 55,98
GT2835R   90 2,090 2,204 53,09 55,98
GT3037   84 2,145 2,340 54,48 59,44
GT3040   84 2,145 2,340 54,48 59,44
GT3240   84 2,106 2,289 53,49 58,14
GT347 TD04   1,550 1,860 39,37 47,24
GT35   84 2,453 2,677 62,31 68,00
GT357 Magnum TE04 H 1,882 2,008 47,80 51,00
GT368SX TE04 H 1,882 2,008 47,80 51,00
GT37   84 2,614 2,854 66,40 72,49
GT40   73 2,591 3,031 65,81 76,99
GT40   84 2,547 3,031 64,69 76,99
GT42   84 2,961 3,228 75,21 81,99
GTRS   76 1,833 2,098 46,56 53,29
HKS GT2835 GT30R? Trimmed 2,016 2,224 51,21 56,49
HKS T04E 62 2,266 2,785 57,56 70,74
HKS T04R 76 2,523 2,894 64,08 73,51
HKS T04R/GT63 GT76 2,547 2,921 64,69 74,19
HKS T04S 76 2,523 2,894 64,08 73,51
HKS T51 KAI 76 2,785 3,198 70,74 81,23
HKS T51 SPL 76 2,785 3,198 70,74 81,23
RHF5 F5   1,875 2,065 47,63 52,45
T-78 GREDDY   2,559 2,913 65,00 73,99
T-88 GREDDY   2,846 3,346 72,29 84,99

A little collection of exploded turbo views

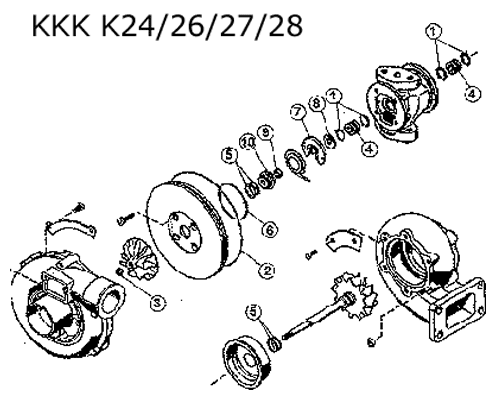

3K K24-28

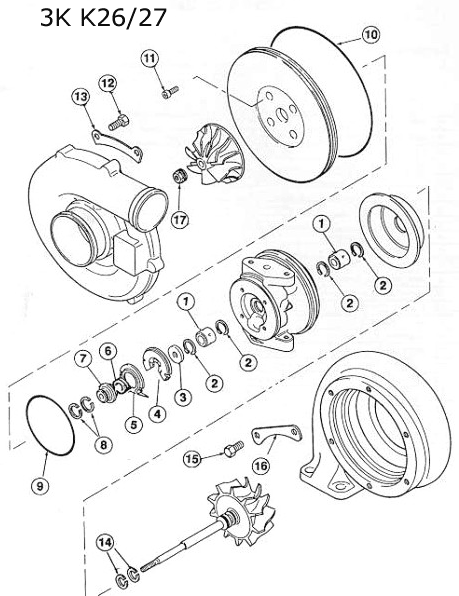

3K K26/27

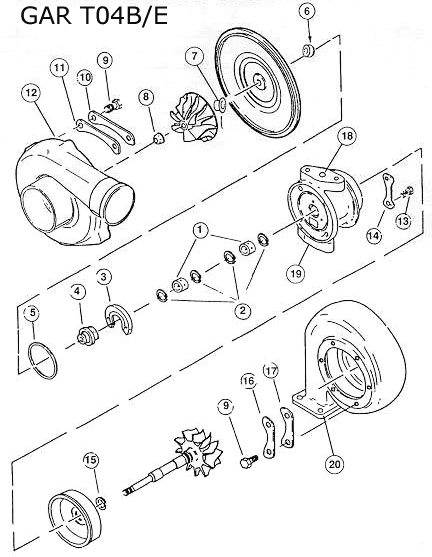

GAR T04

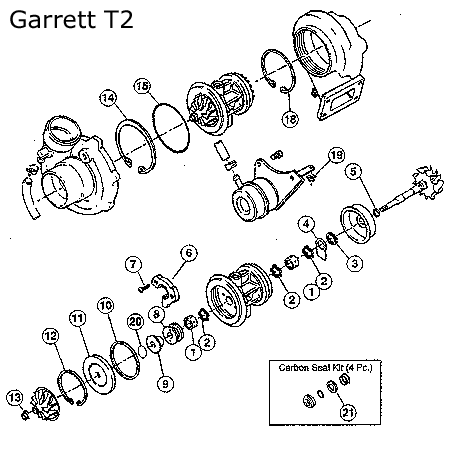

GAR T2

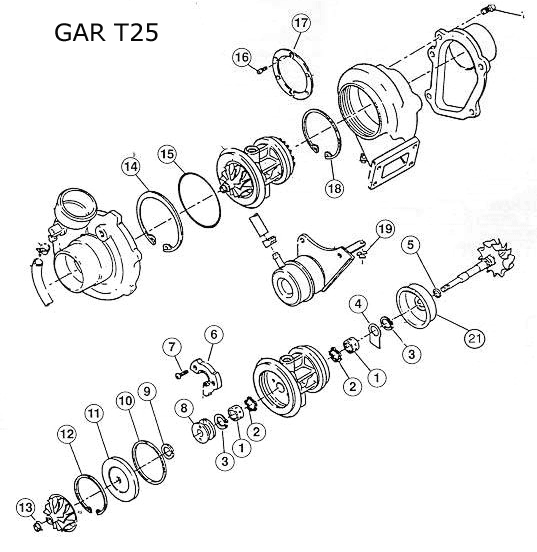

GAR T25

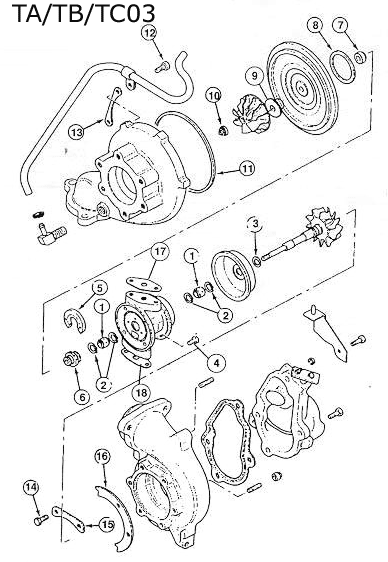

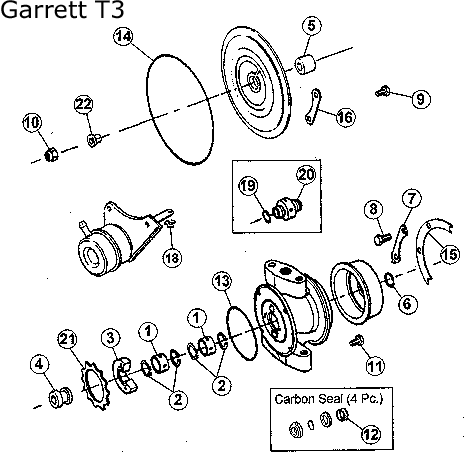

GAR T3 v1
GAR T3 v2

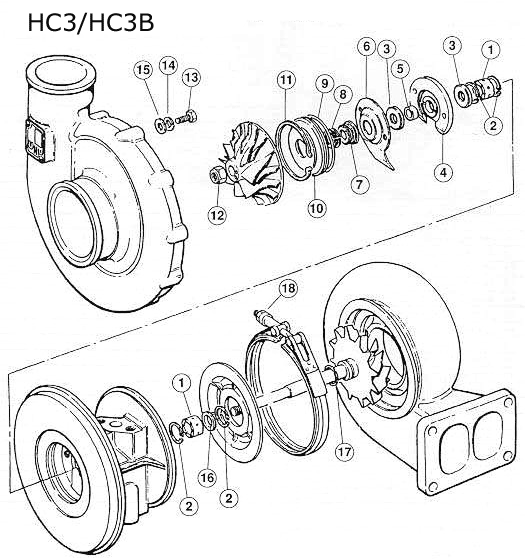

HC3/HC3B

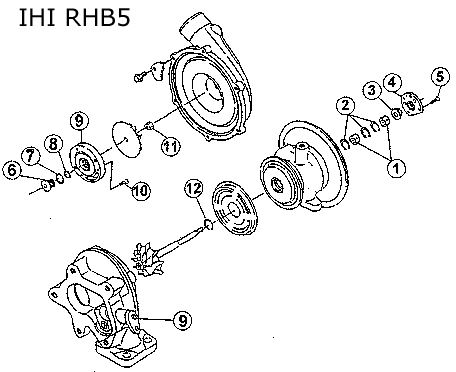

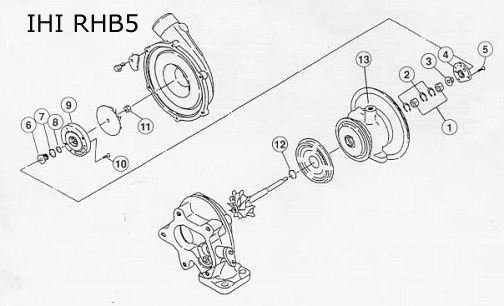

IHI RHB5 v1
IHI RHB5 v2

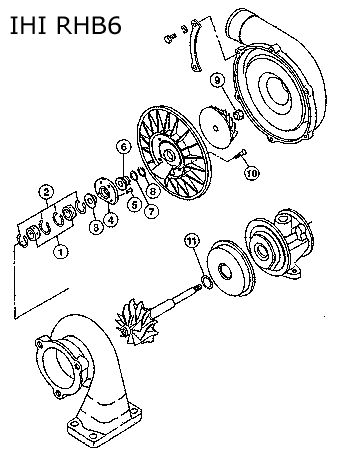

IHI RHB6

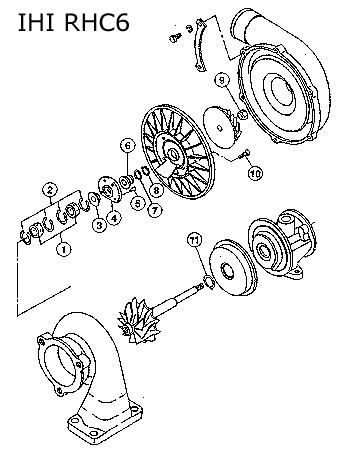

IHI RHC6

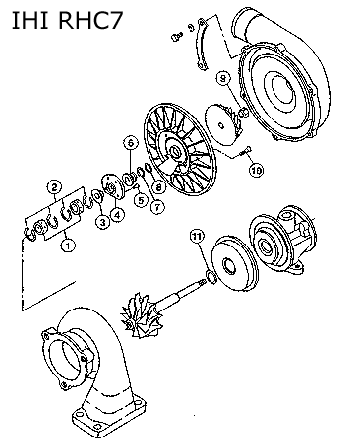

IHI RHC7

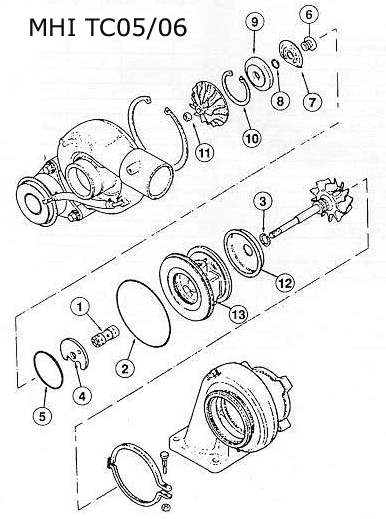

MHI TC05/06

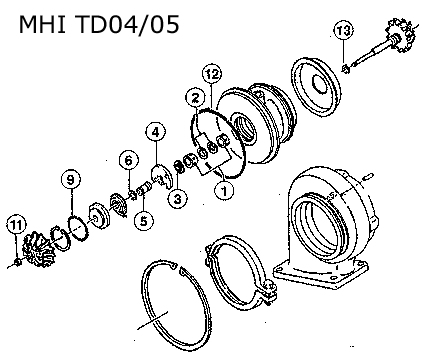

MHI TD04/05

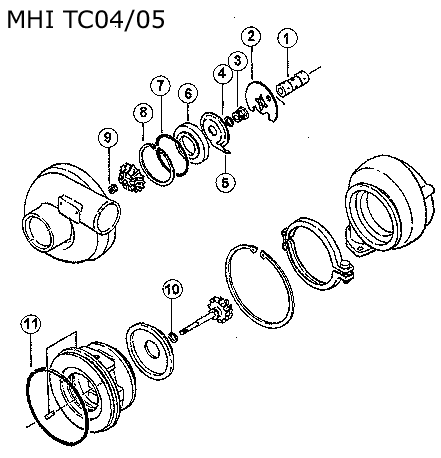

MHI TC04/05

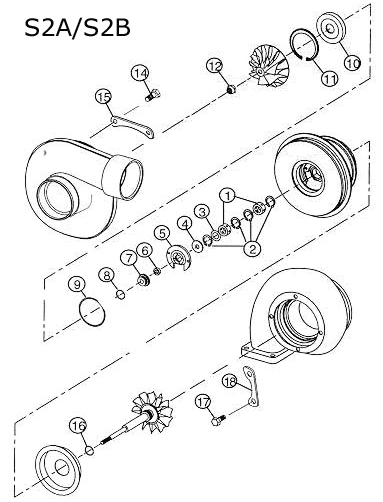

S2A/B

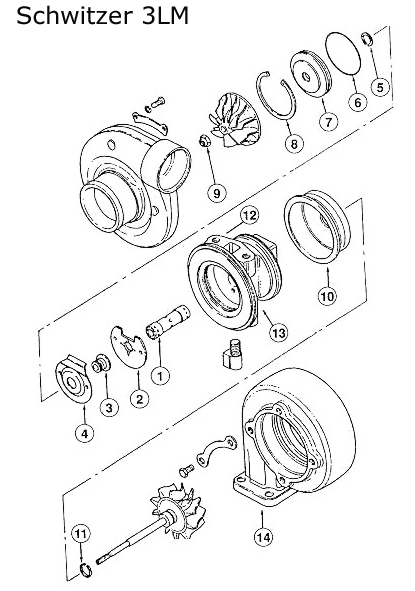

SCH 3LM

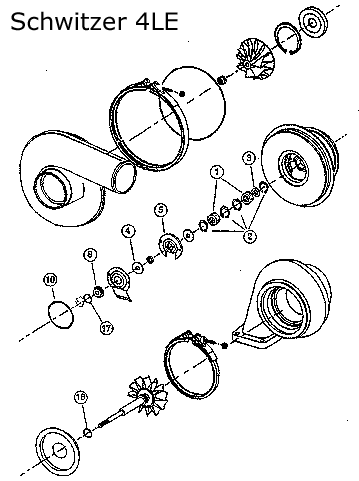

SCH 4LE

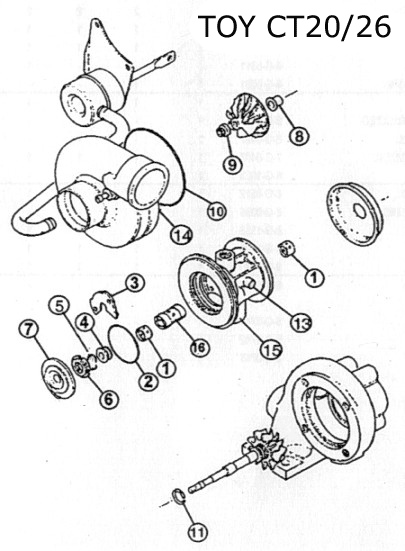

TOY CT20/26

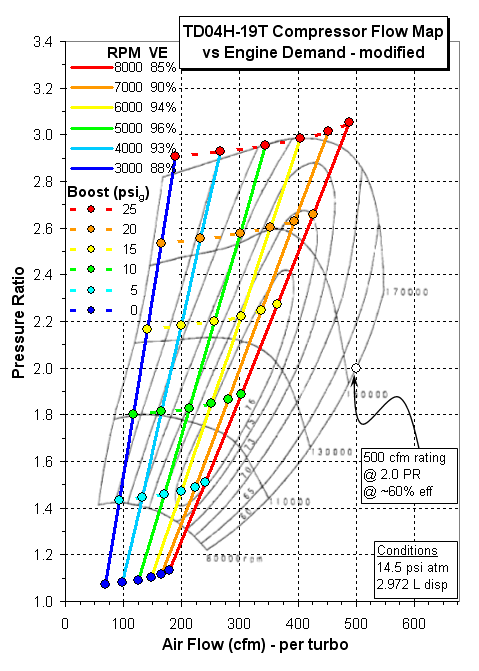

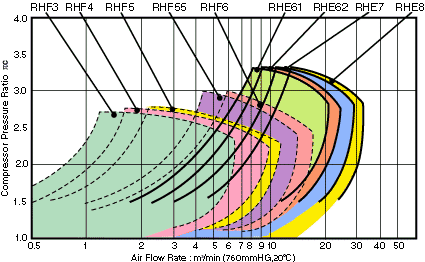

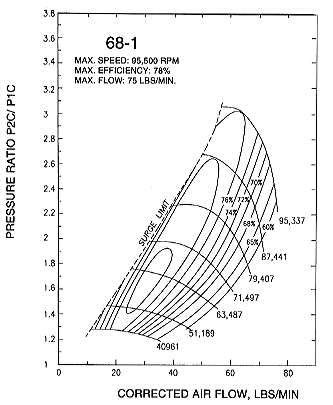

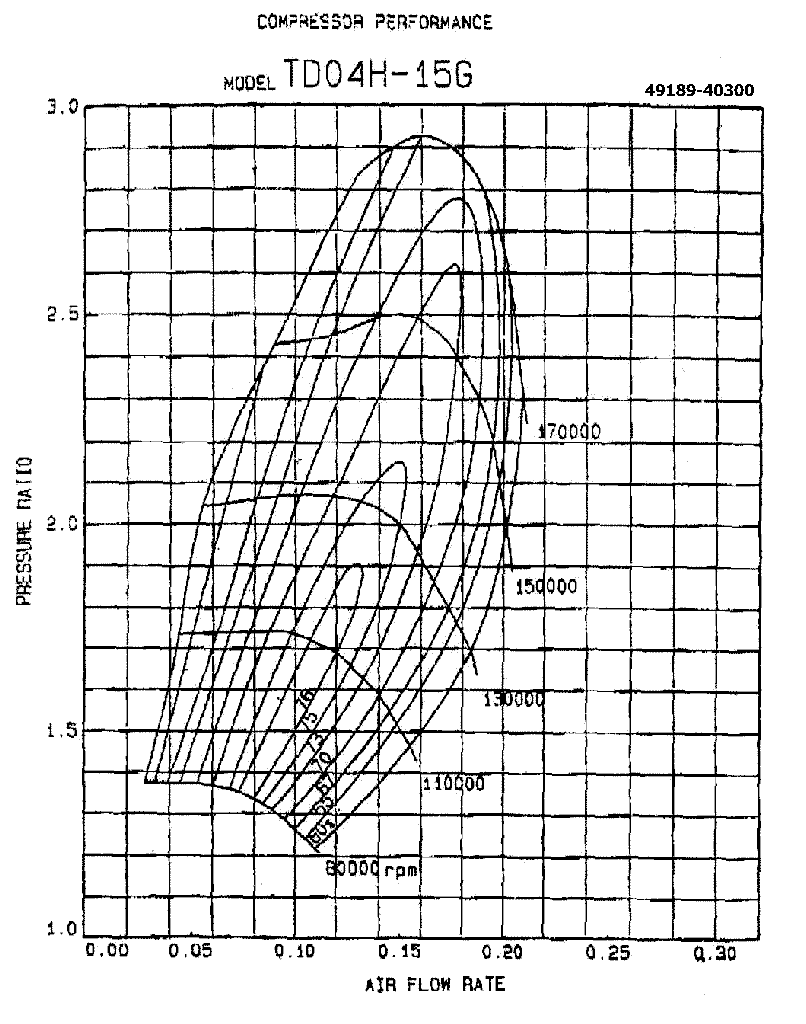

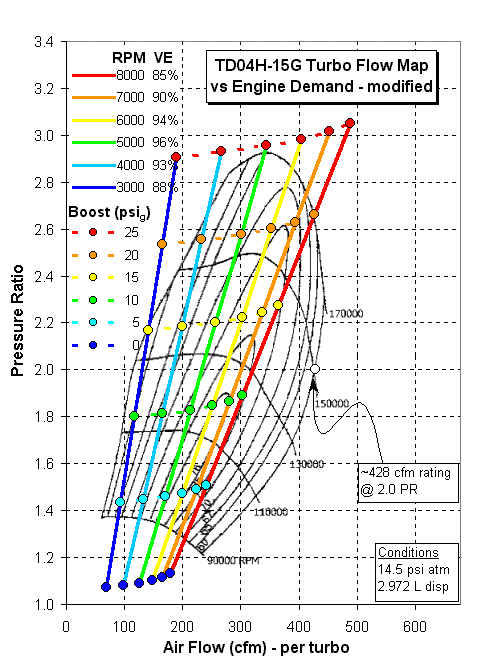

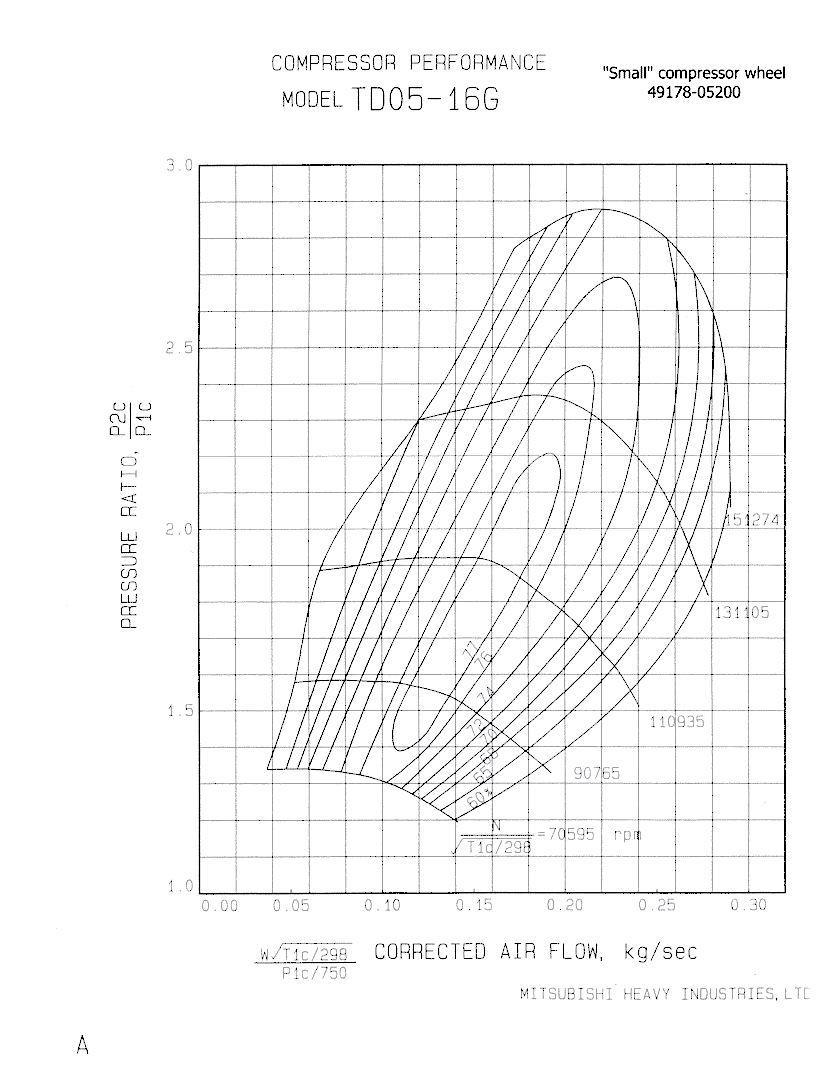

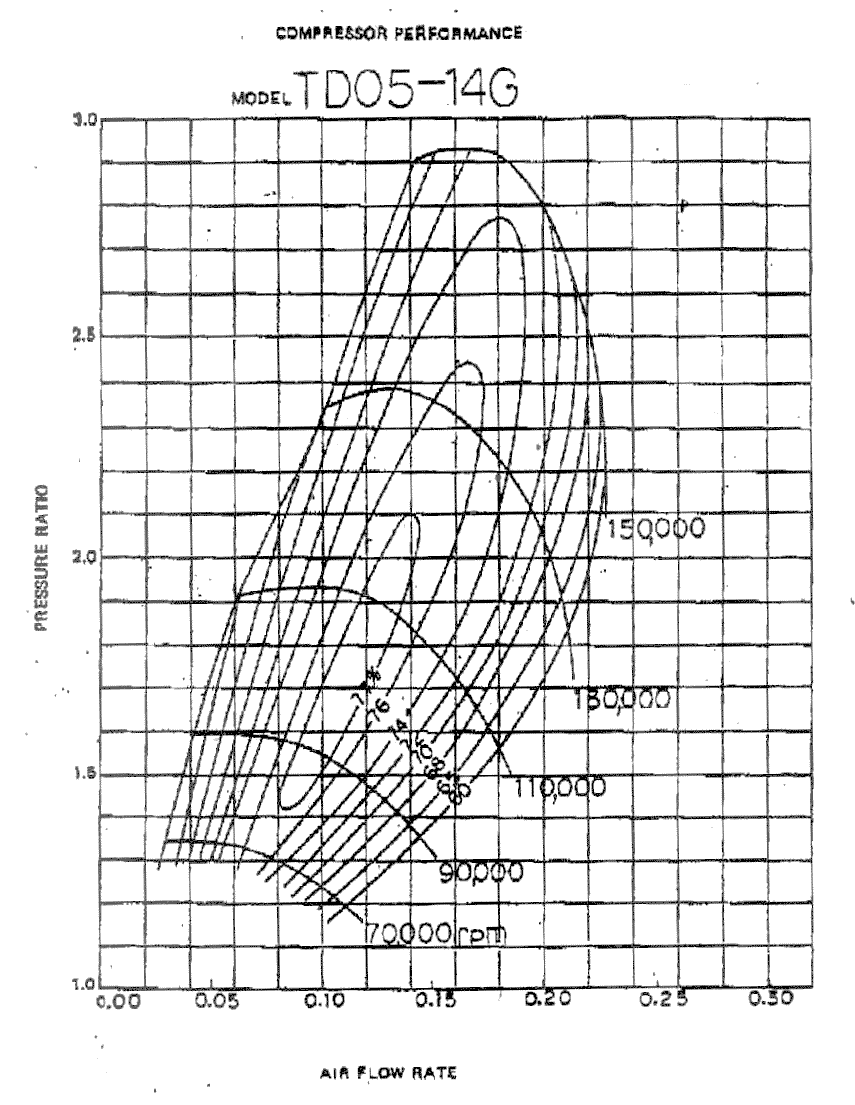

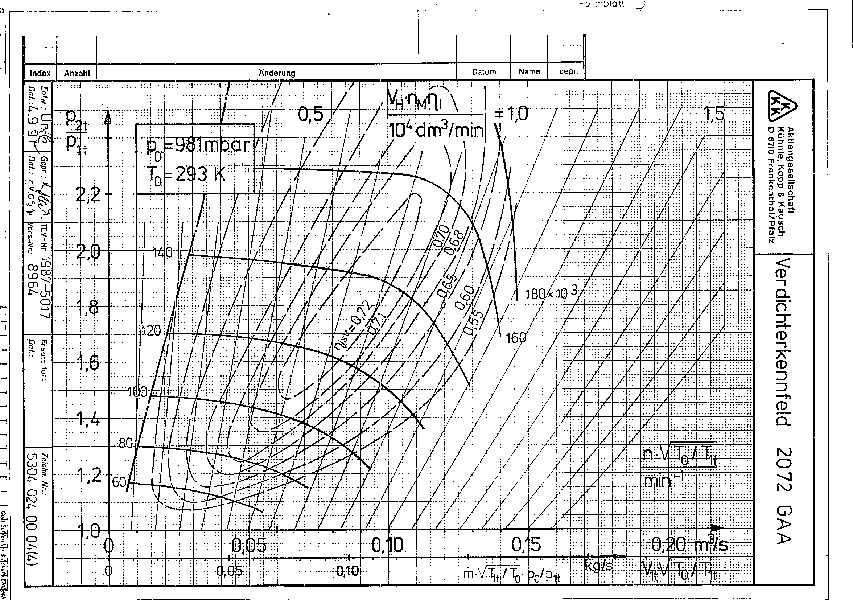

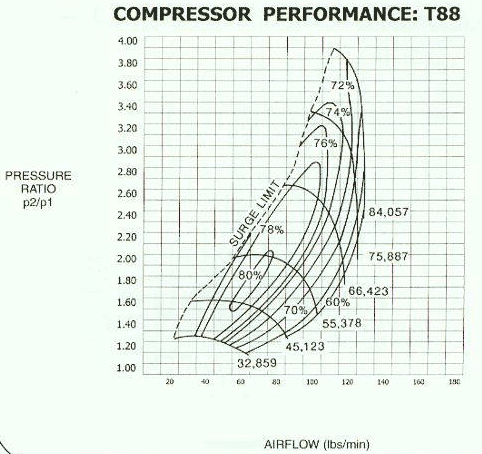

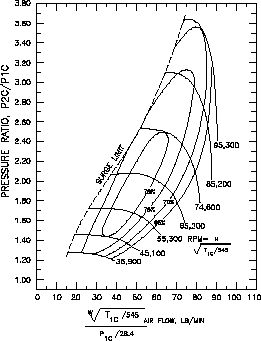

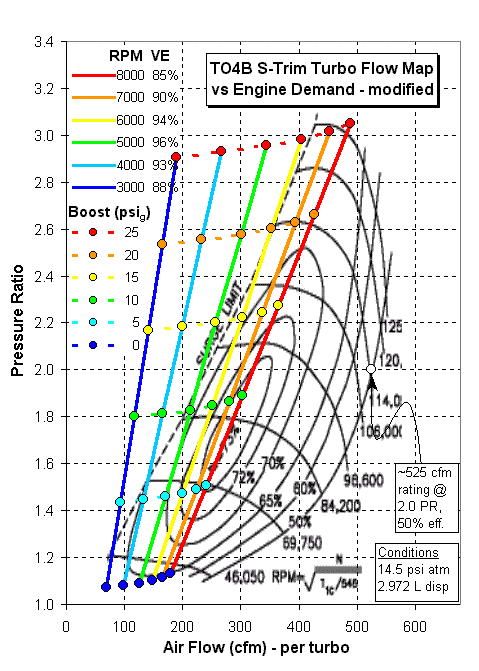

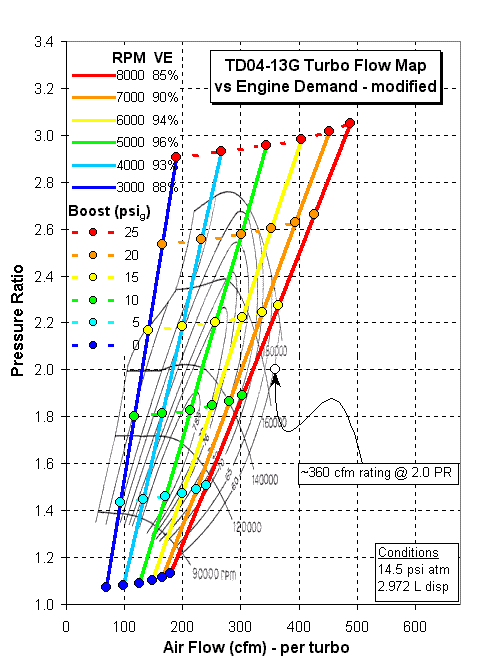

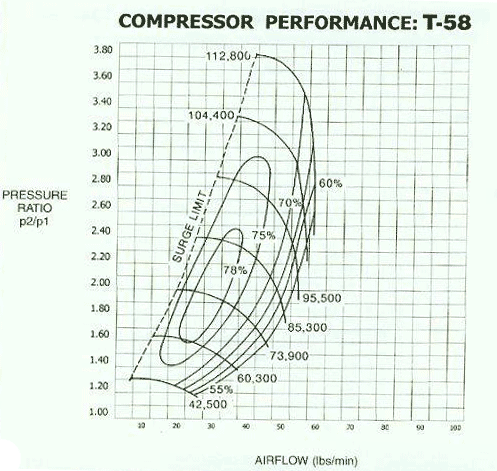

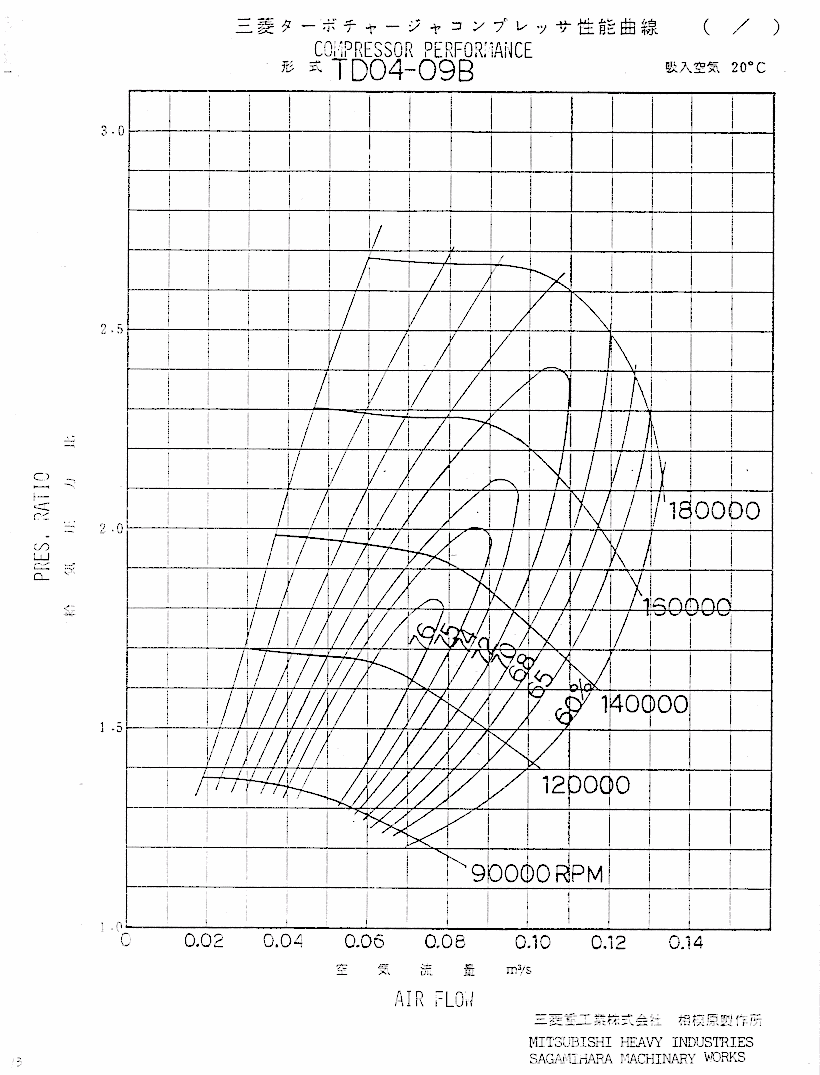

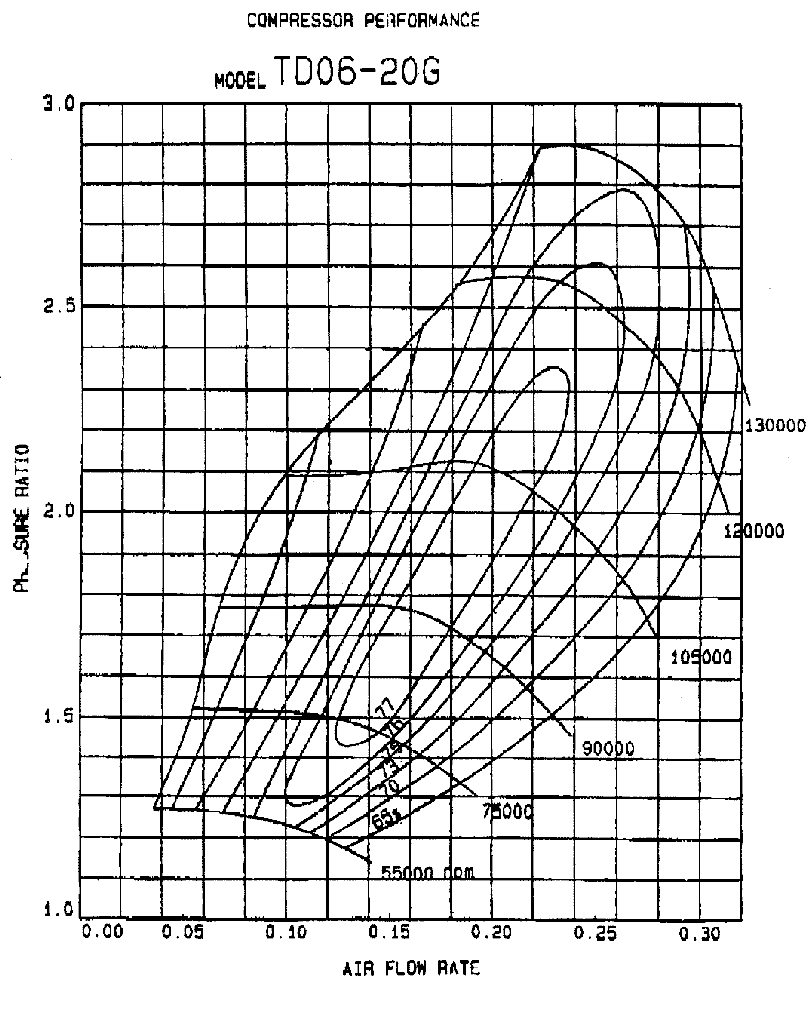

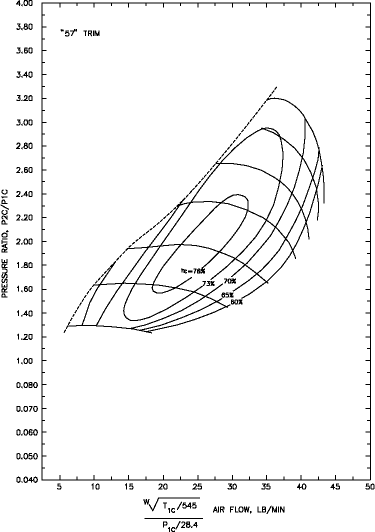

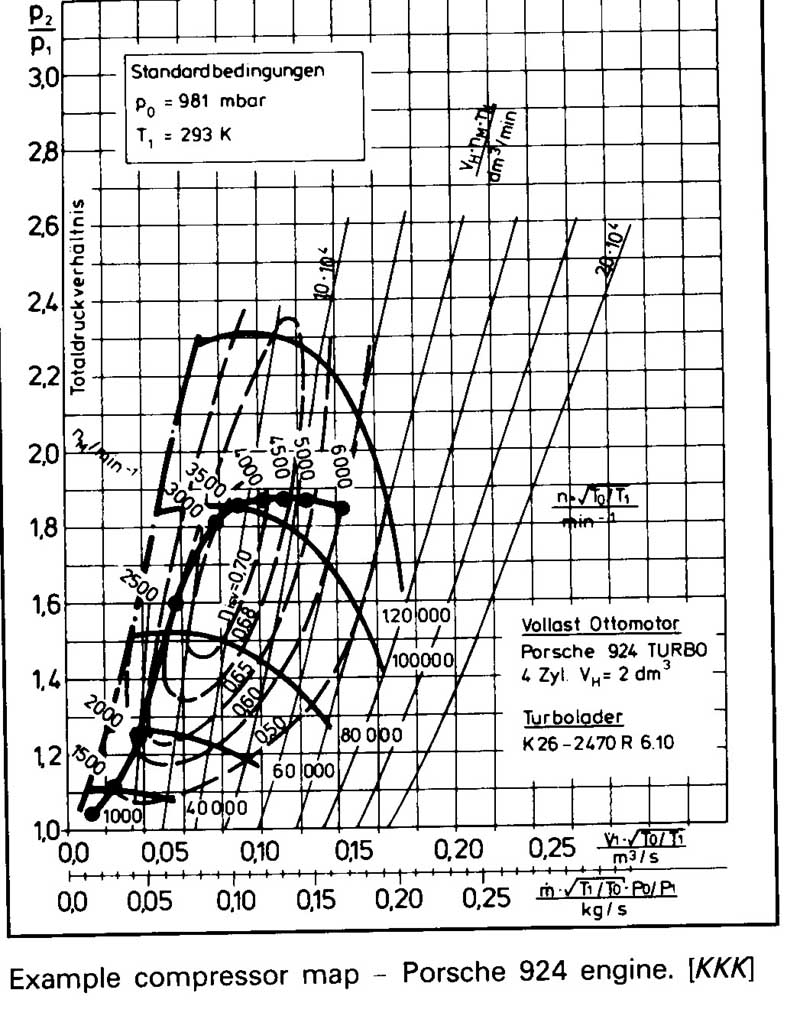

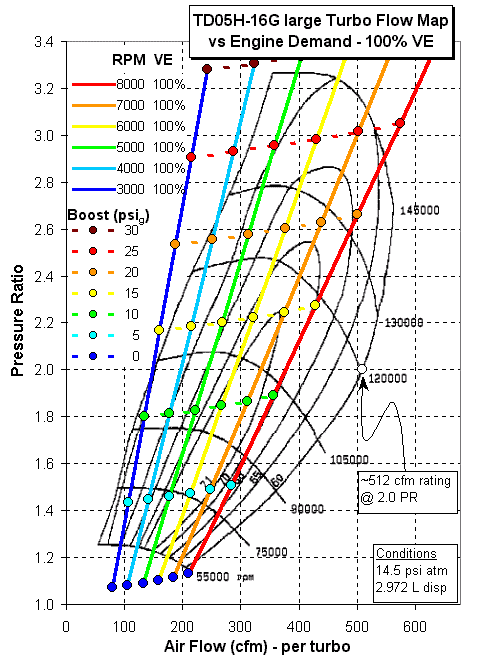

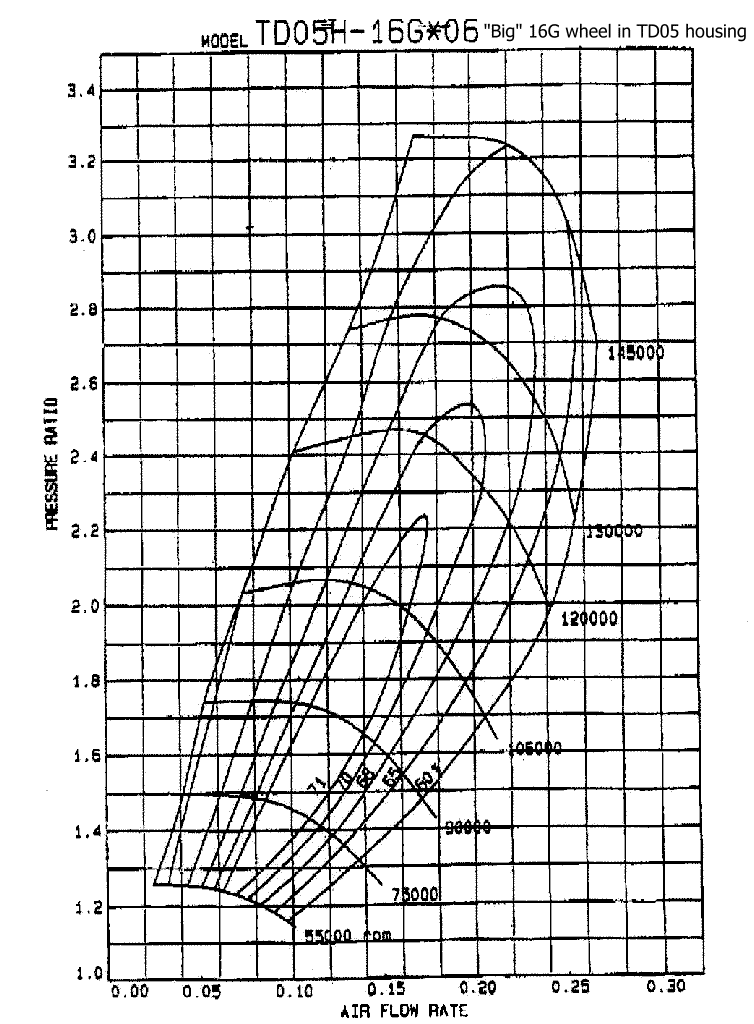

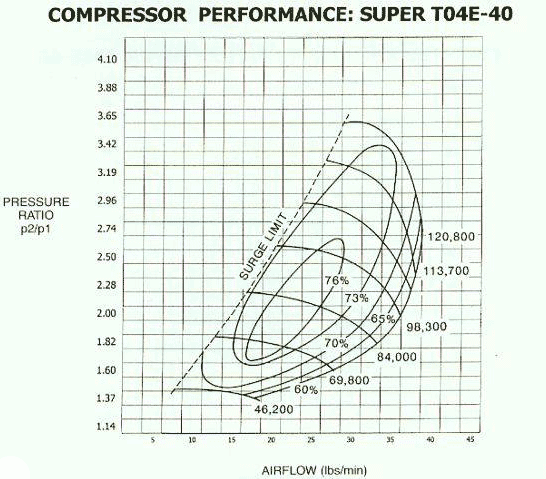

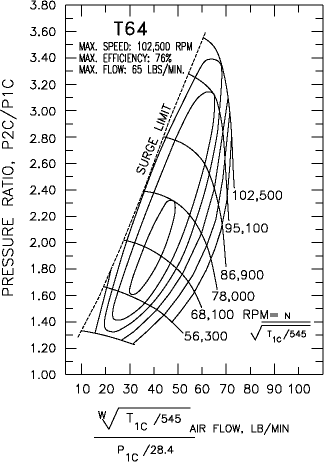

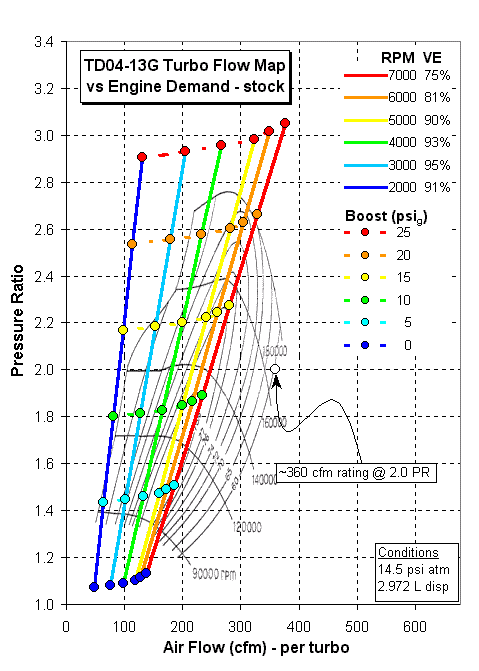

A little collection of turbo maps

 Garrett/Air-research:

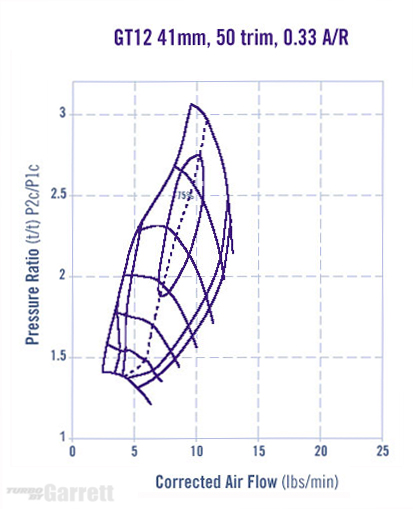

GT12 compressor

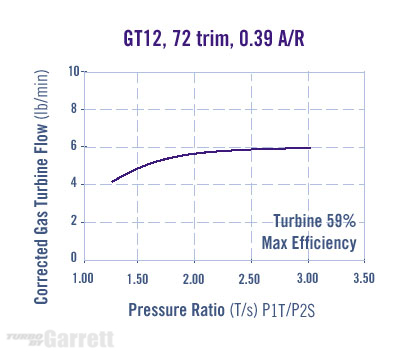

GT12 turbine

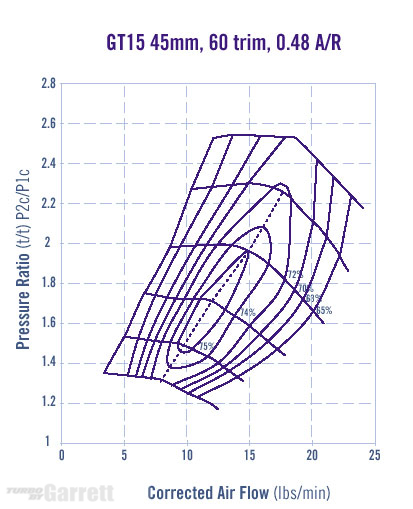

GT15 compressor

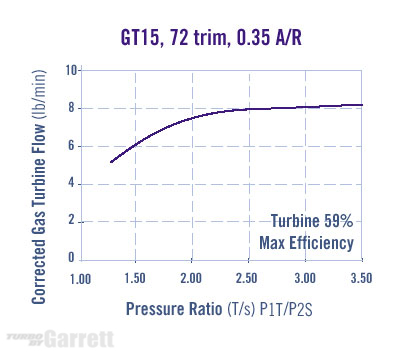

GT15 turbine

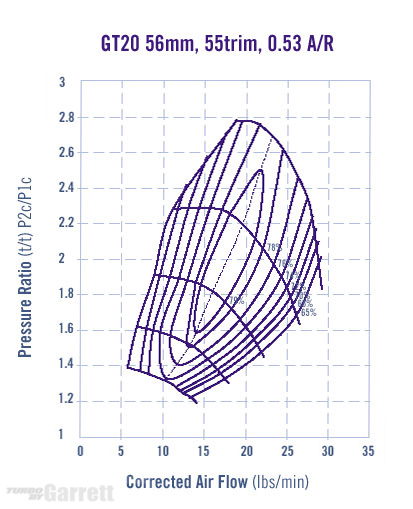

GT20 compressor

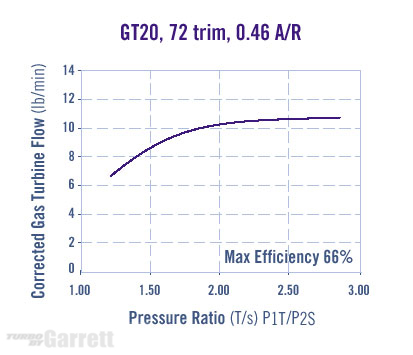

GT20 turbine

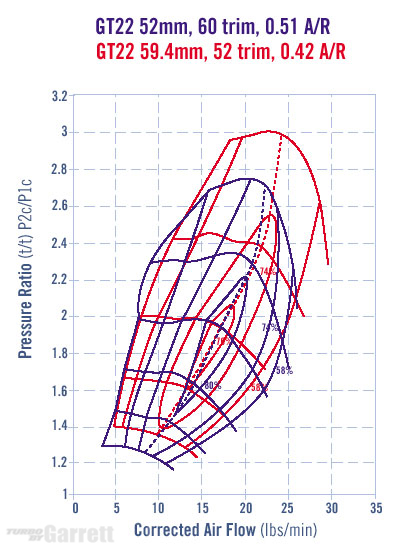

GT22 compressor

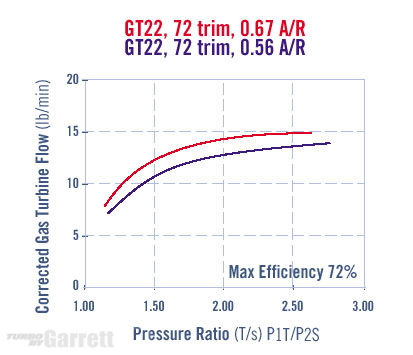

GT22 turbine

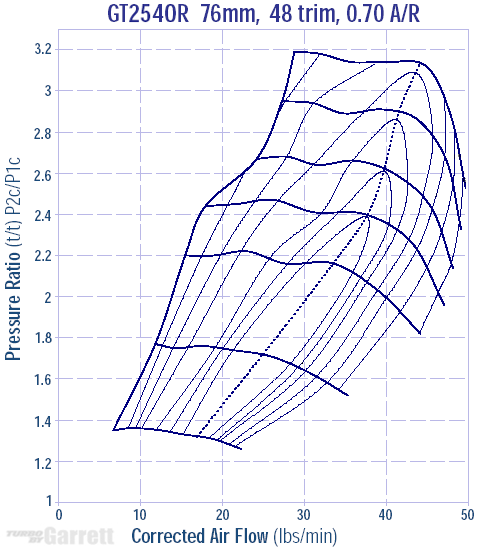

GT2540R compressor

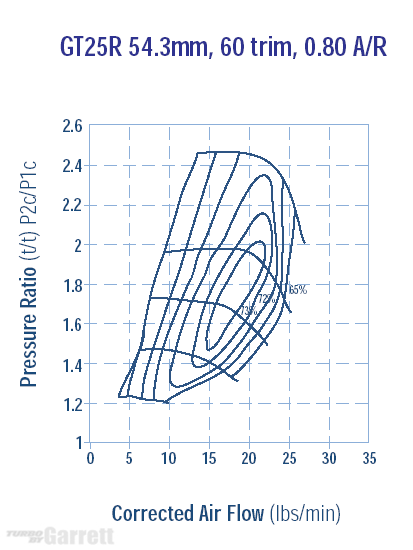

GT25R turbine

GT28R compressor

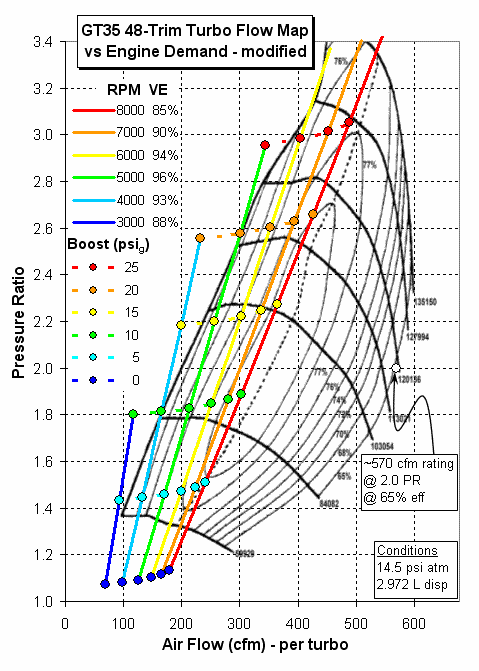

GT35 compressor

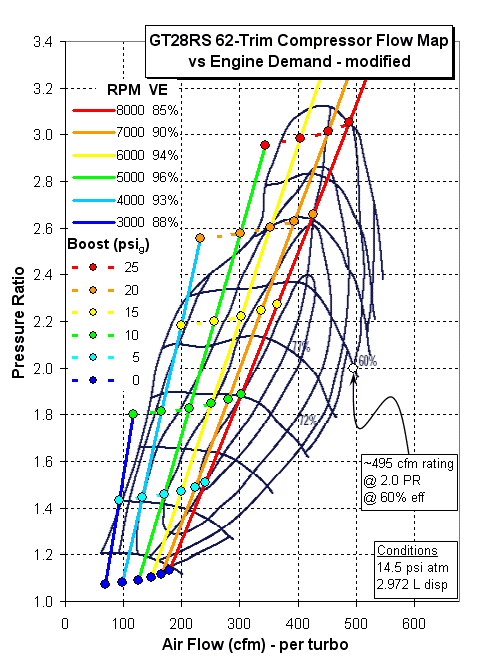

GT28rs compressor

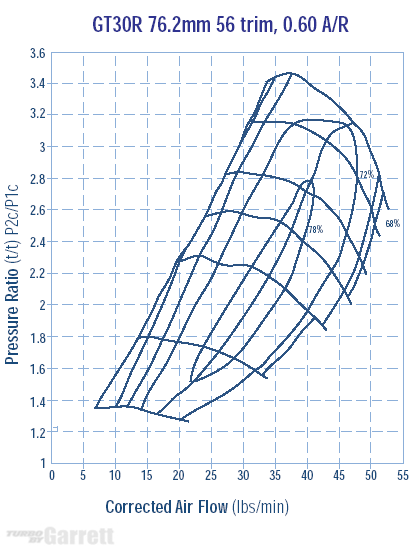

GT30R compressor

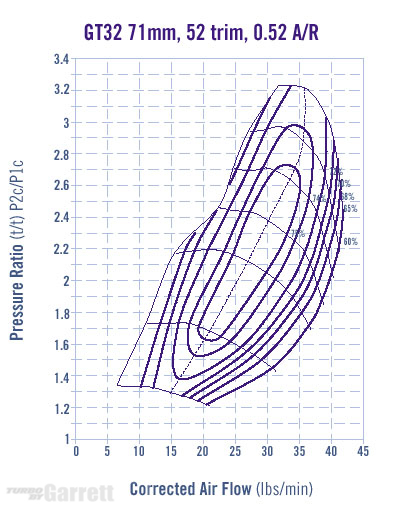

GT32 compressor

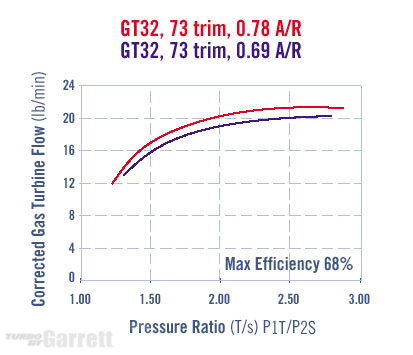

GT32 turbine

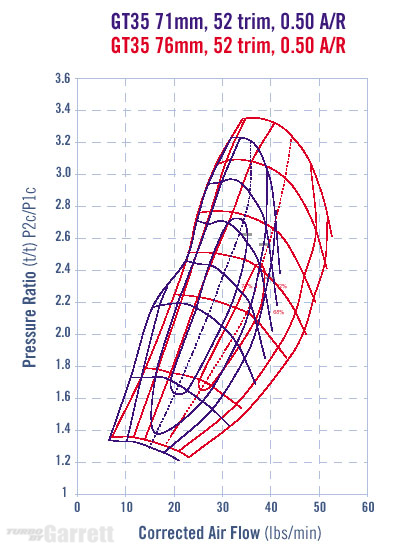

GT35 compressor

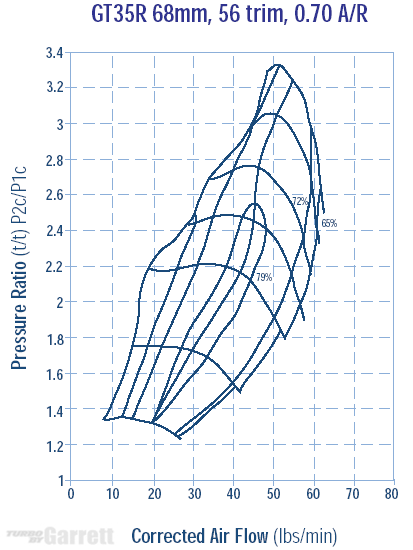

GT35R compressor

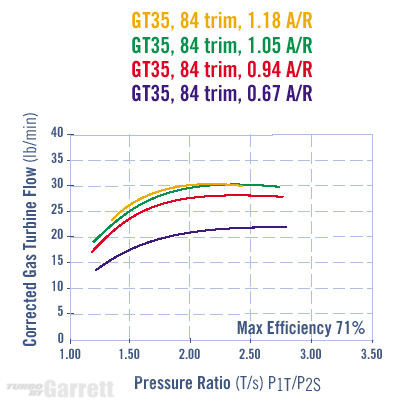

GT35 turbine

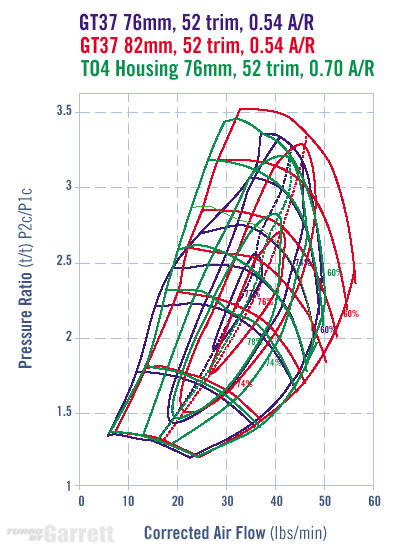

GT37 compressor

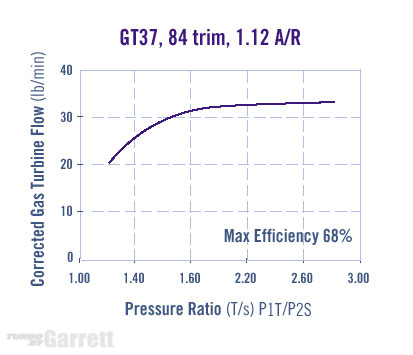

GT37 turbine

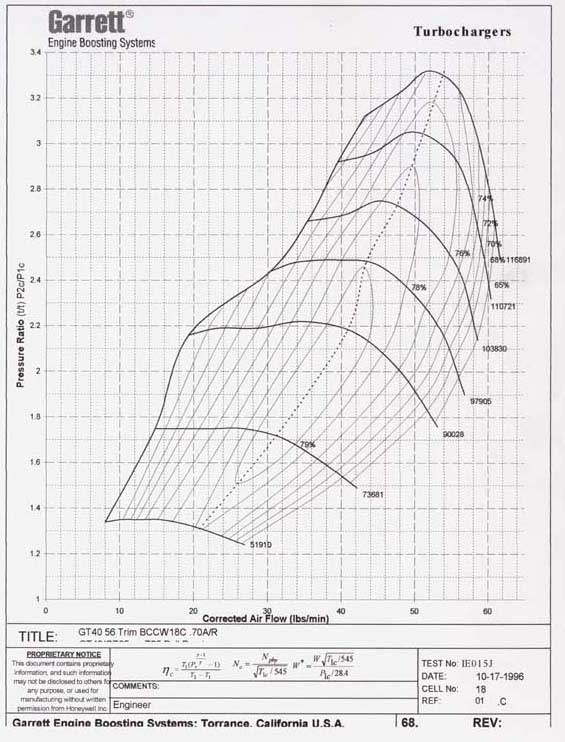

GT40 56trim compressor

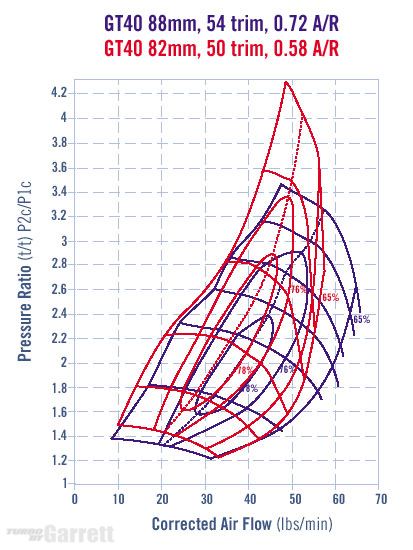

GT40 compressor

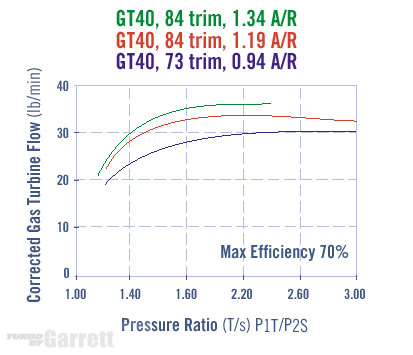

GT40 turbine

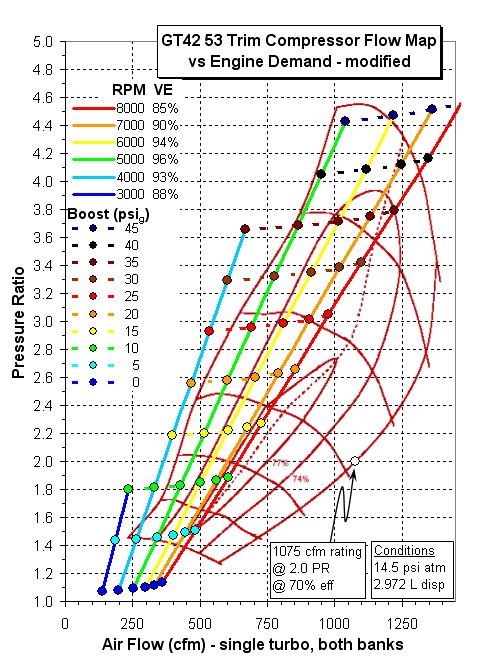

GT42 53 trim compressor

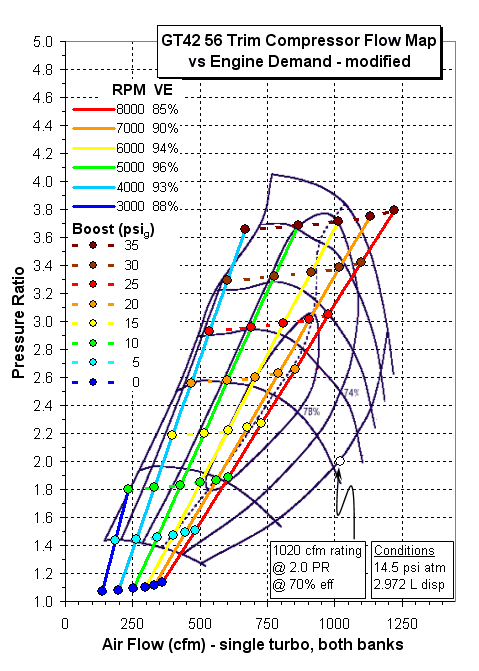

GT42 56 trim compressor

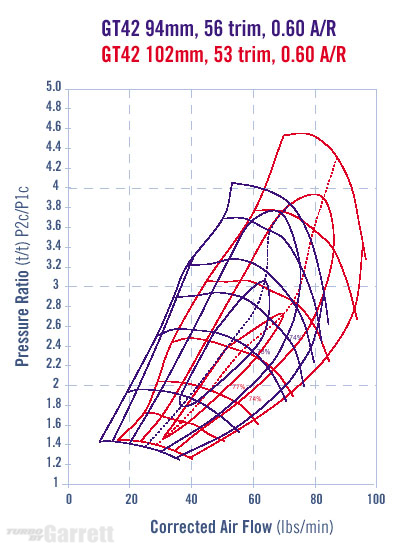

GT42 compressor

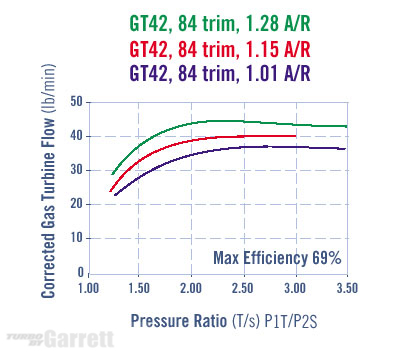

GT42 turbine

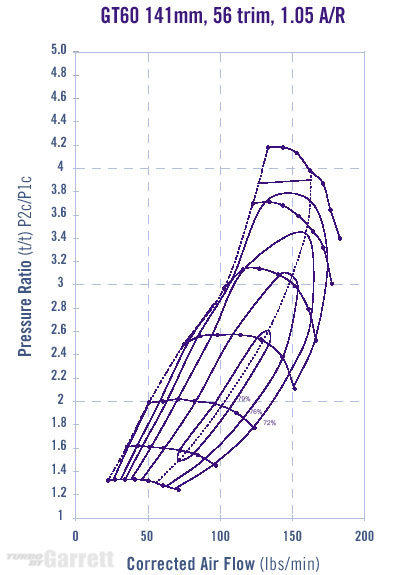

GT60 compressor

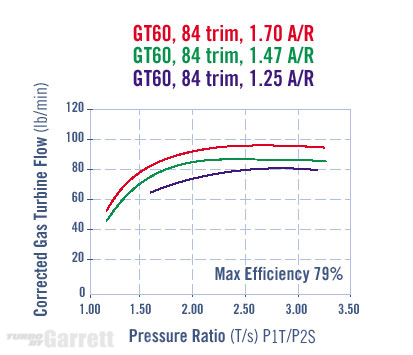

GT60 turbine

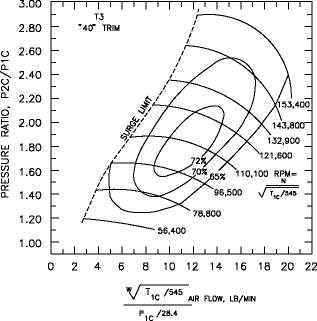

T3 trim 40 compressor

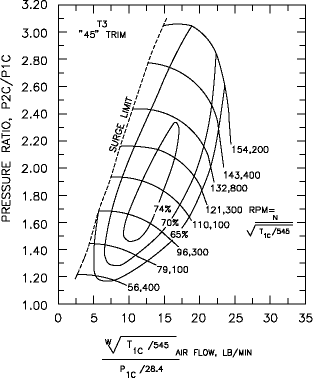

T3 trim 45 compressor

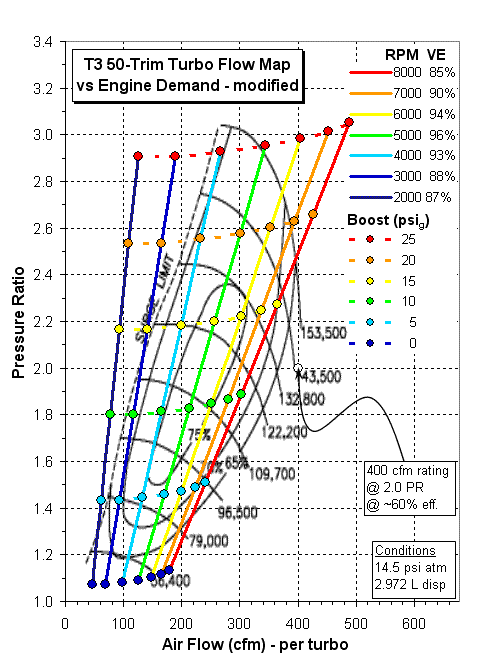

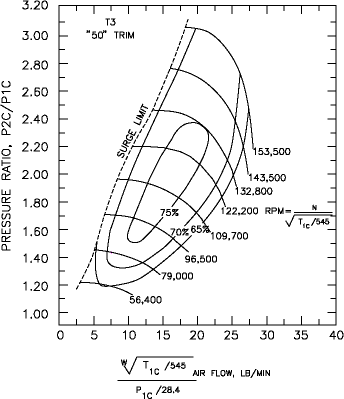

T3 trim 50 compressor
T3 trim 50 - JL compressor

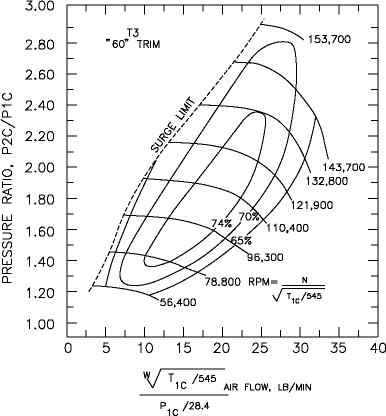

T3 trim 60 compressor

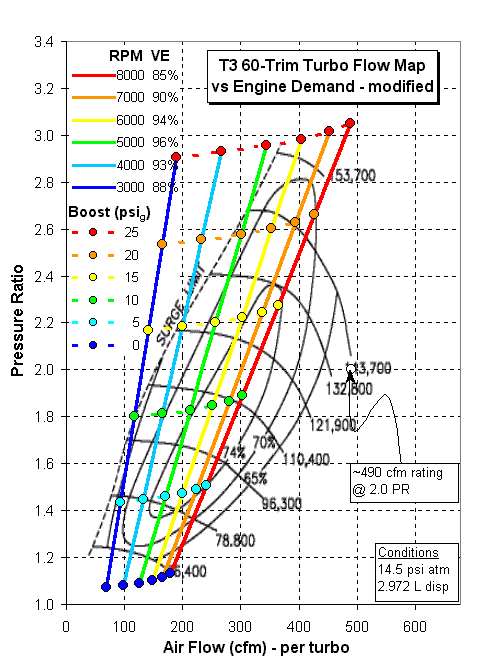

T3 trim 60 - JL compressor

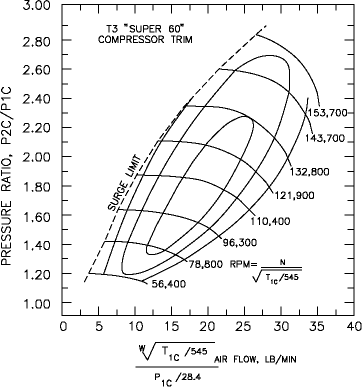

T3 trim 60 compressor

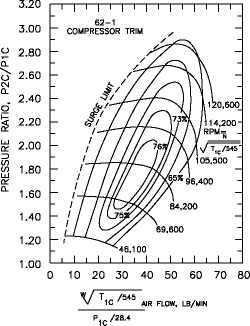

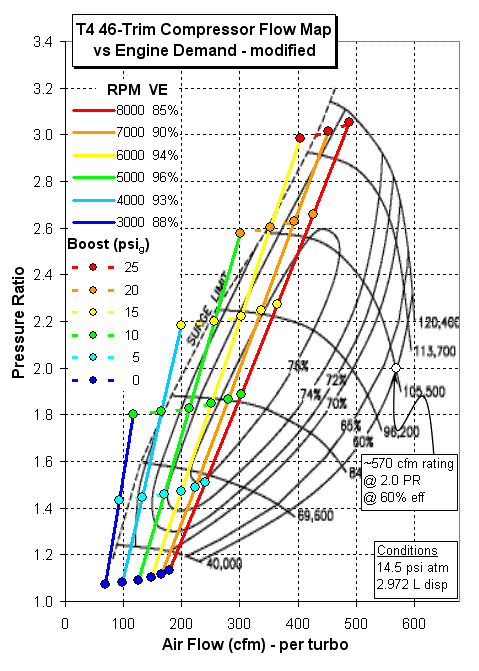

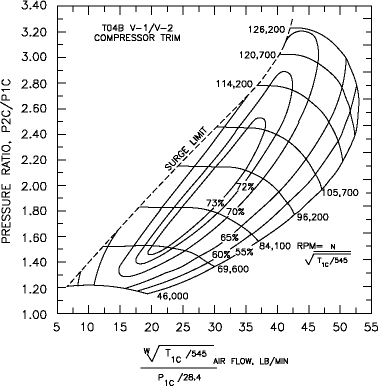

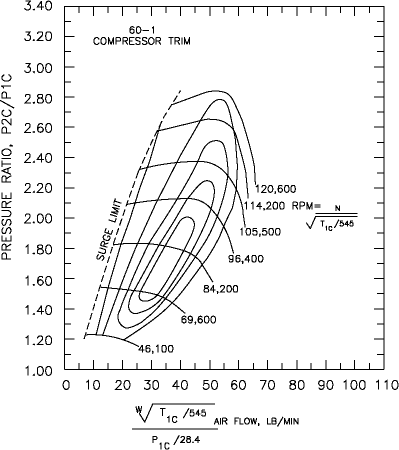

T4 trim 46 compressor		 T04B trim 60 compressor T04B trim 62 compressor

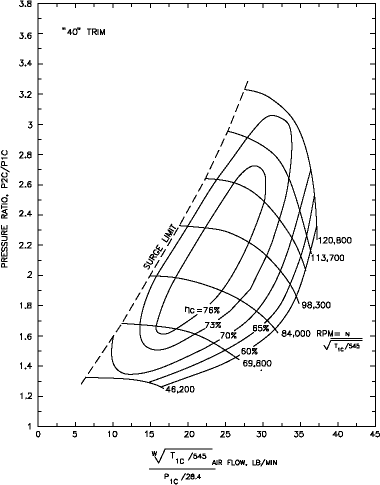

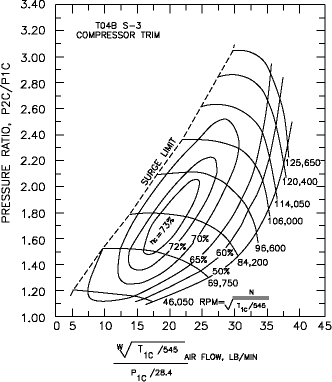

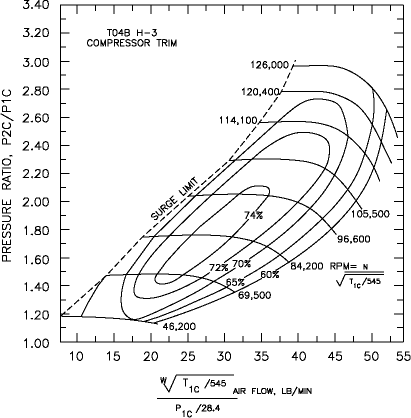

T04B h3 compressor T04B s3 trim compressor T04B vl/v2 compressor T04E trim 40 compressor T04E-40-super Compressor

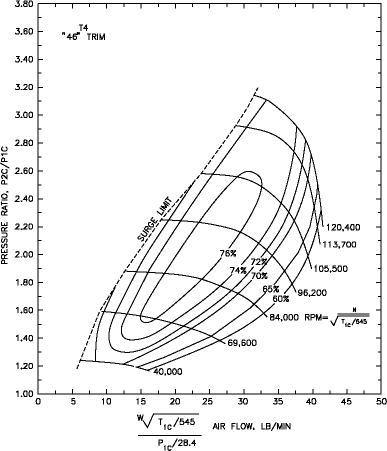

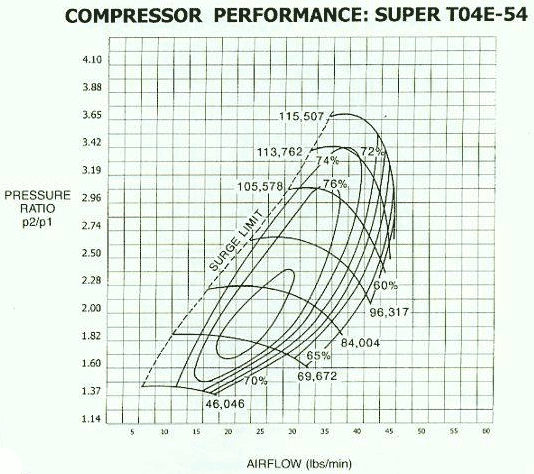

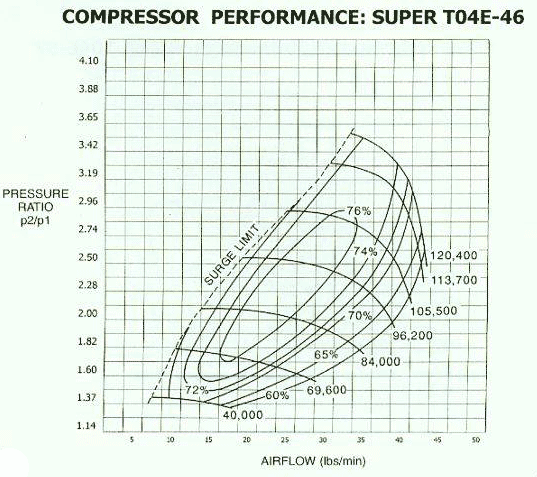

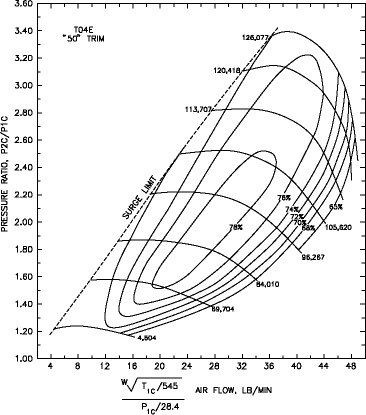

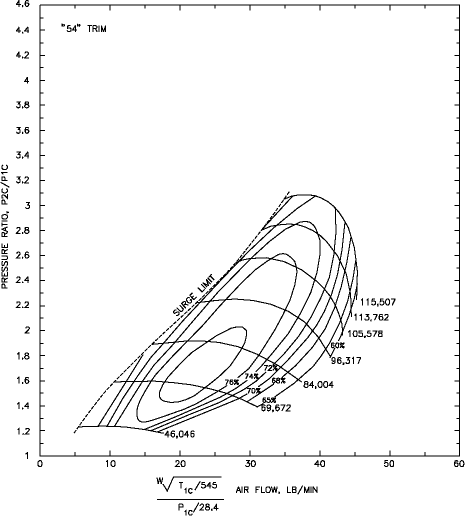

T04E trim 46 compressor T04E-46-super Compressor T04E trim 50 compressor T04E trim 54 compressor T04E-54-super Compressor

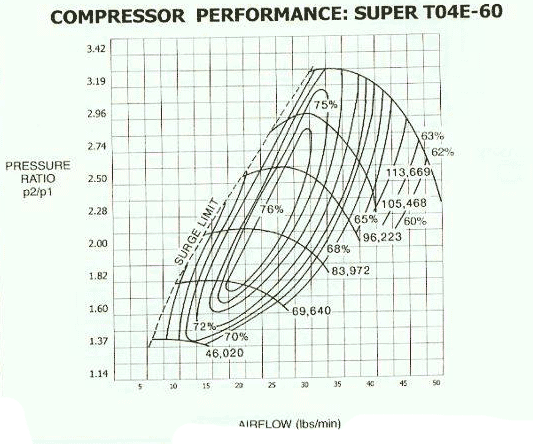

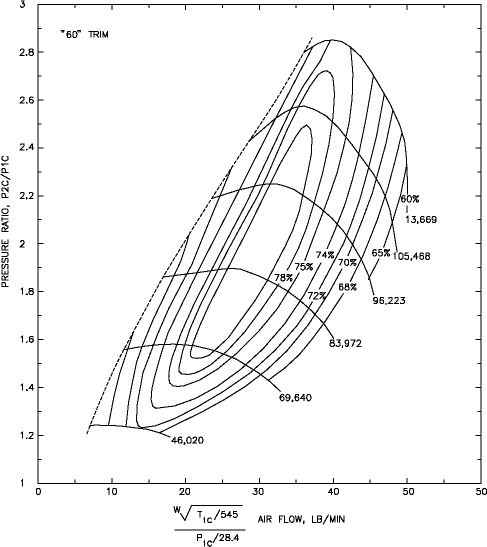

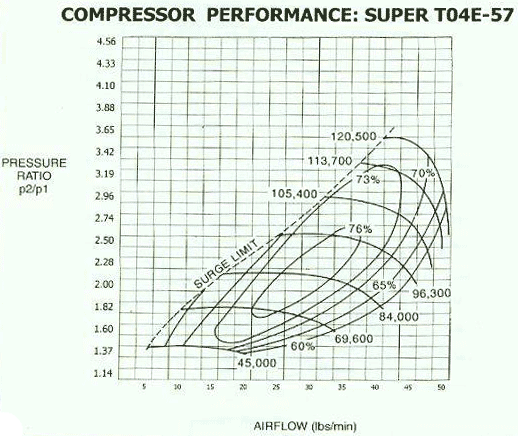

T04E trim 57 compressor T04E-57-super Compressor T04E trim 60 compressor T04E-60-super Compressor T04B s-trim compressor
T58 Compressor

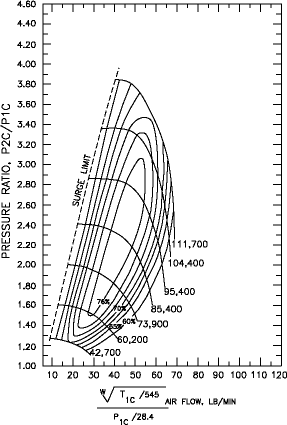

T61 compressor
T64 compressor

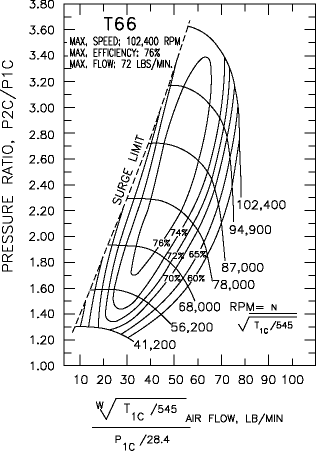

T66 compressor		 T68 compressor

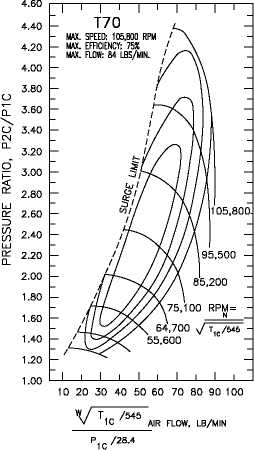

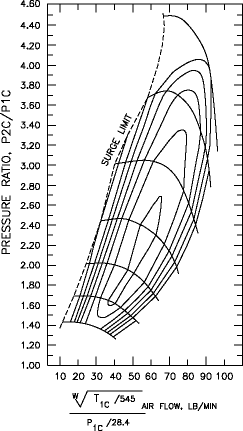

T70 compressor T72 compressor T76 compressor T88 Compressor

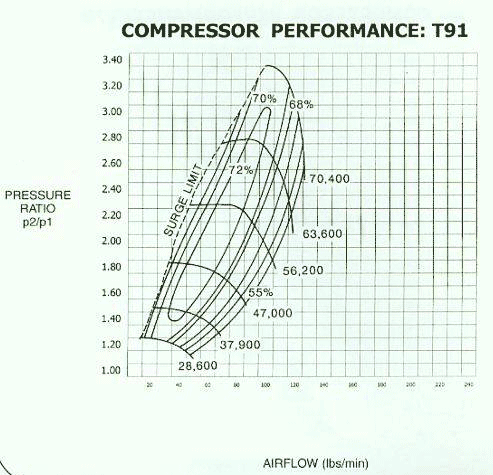

T91 Compressor

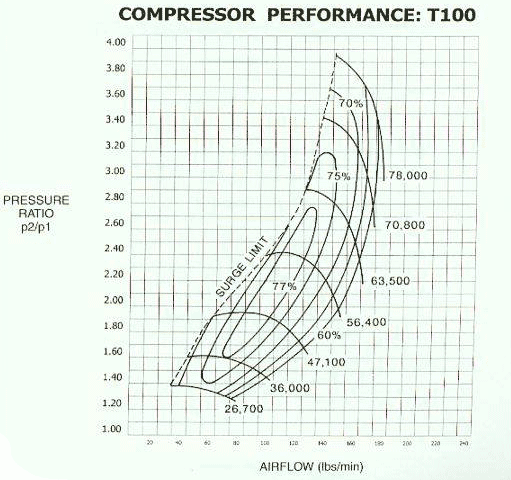

T100 Compressor

MHI:

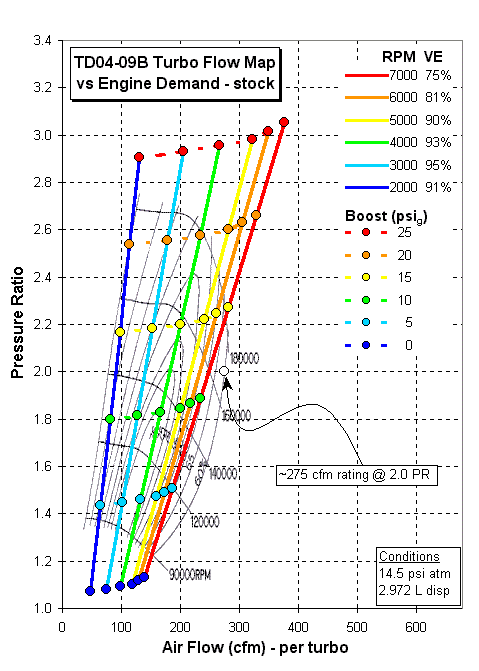

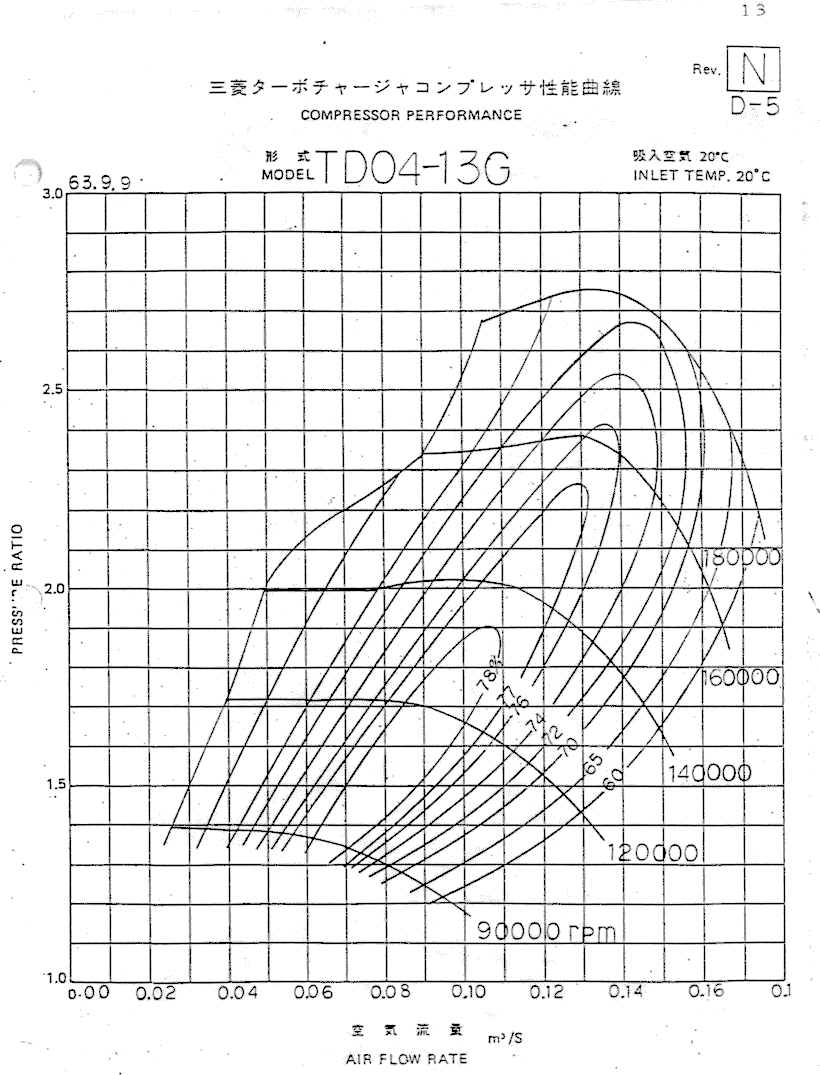

TD04-09b compressor TD04-09b-jl compressor TD04-13g compressor TD04-13g-jl compressor TD04-13g-jl-stock compressor

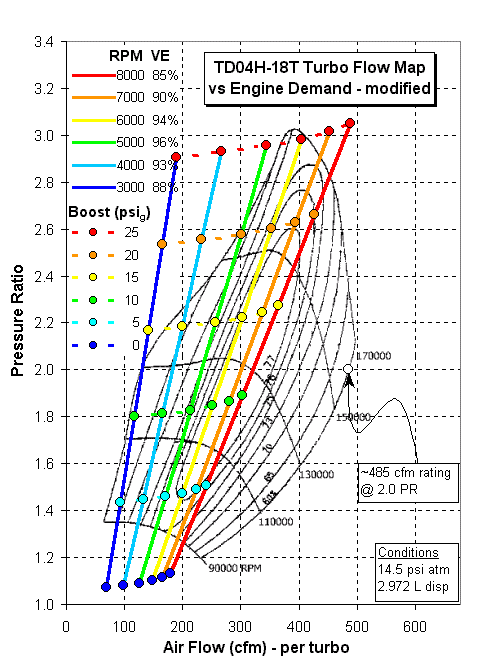

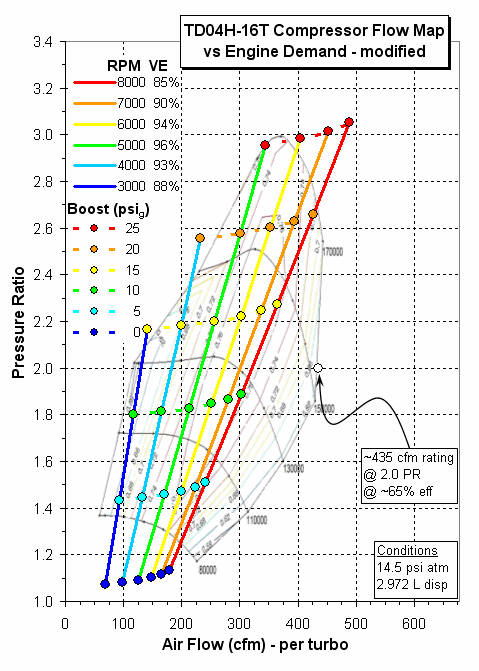

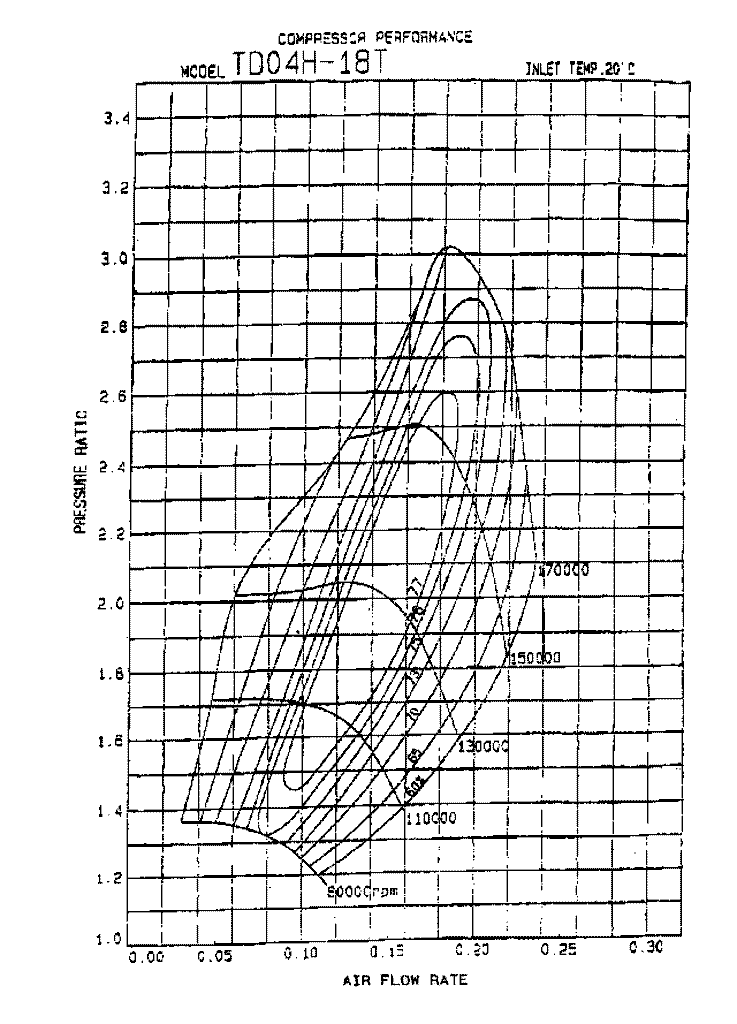

TD04-15g compressor TD04-15g-jl compressor TD04h-16t-jl compressor TD04h-18t compressor TD04h-18t-jl compressor

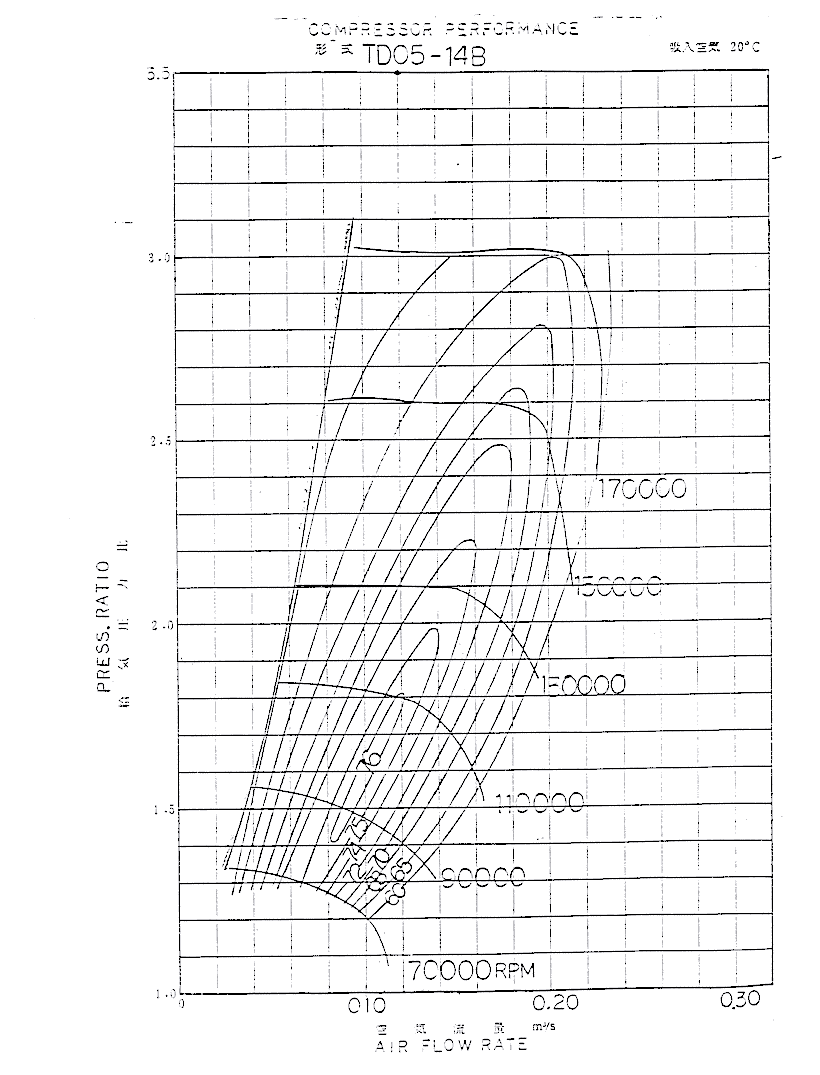

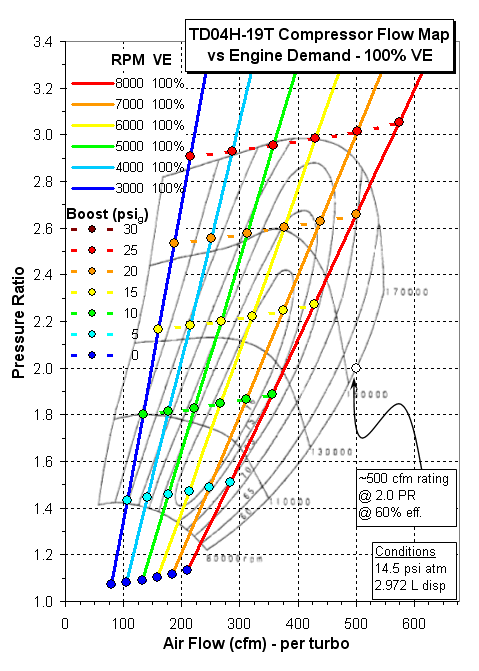

TD04h-19t-jl compressor TD04h-19t-jl,100ve compressor TD05-14b compressor TD05-14g compressor TD05-16g large compressor

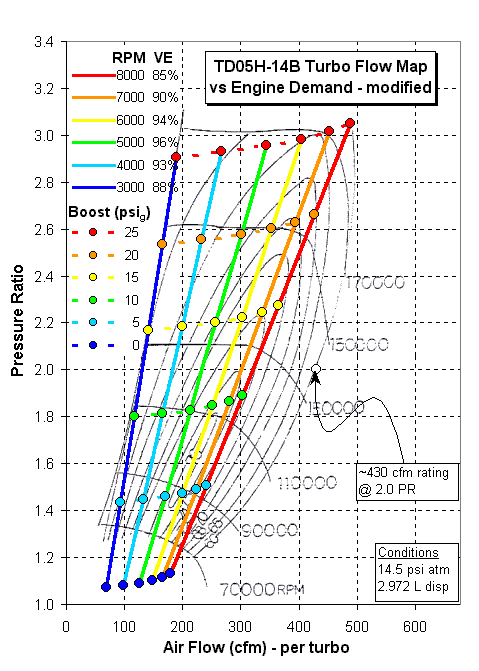

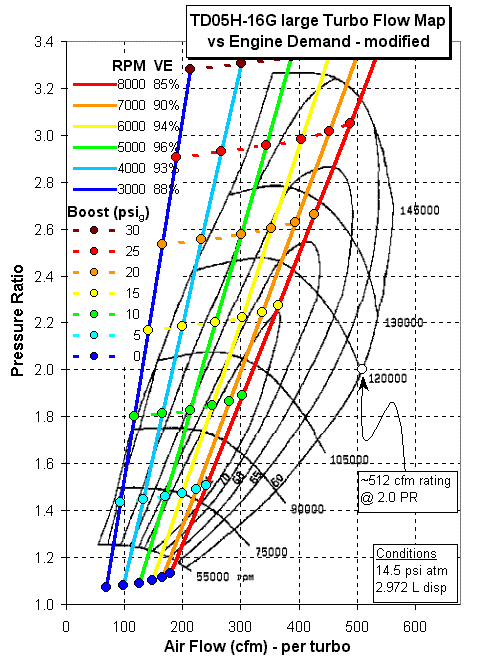

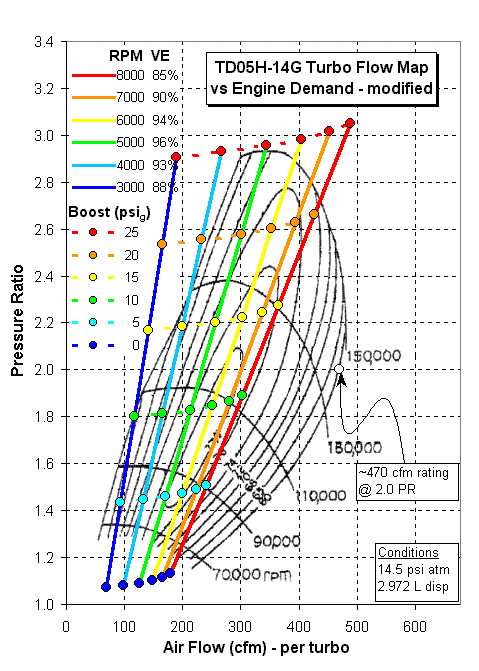

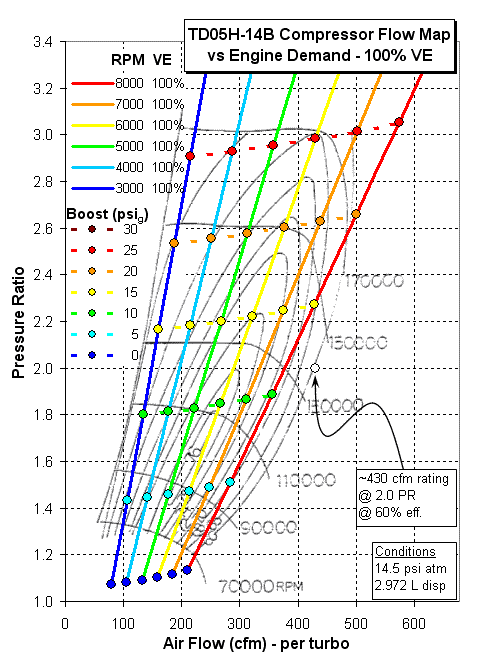

TD05-16g small compressor TD05h-14b-jl compressor TD05h-14b-jl,100ve compressor TD05h-14g-jl compressor TD05h-16g large-jl compressor

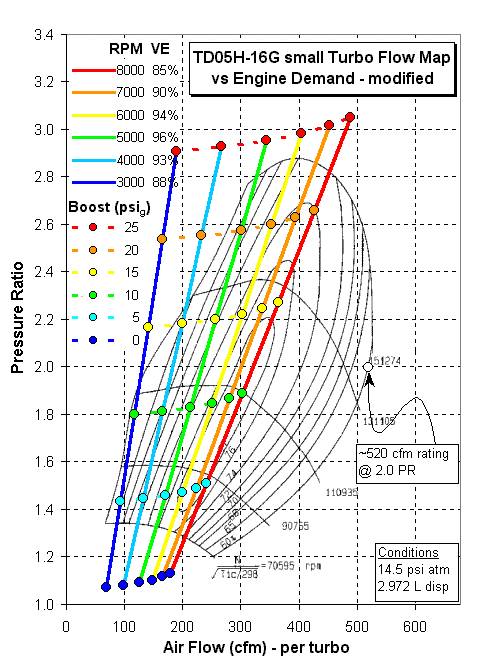

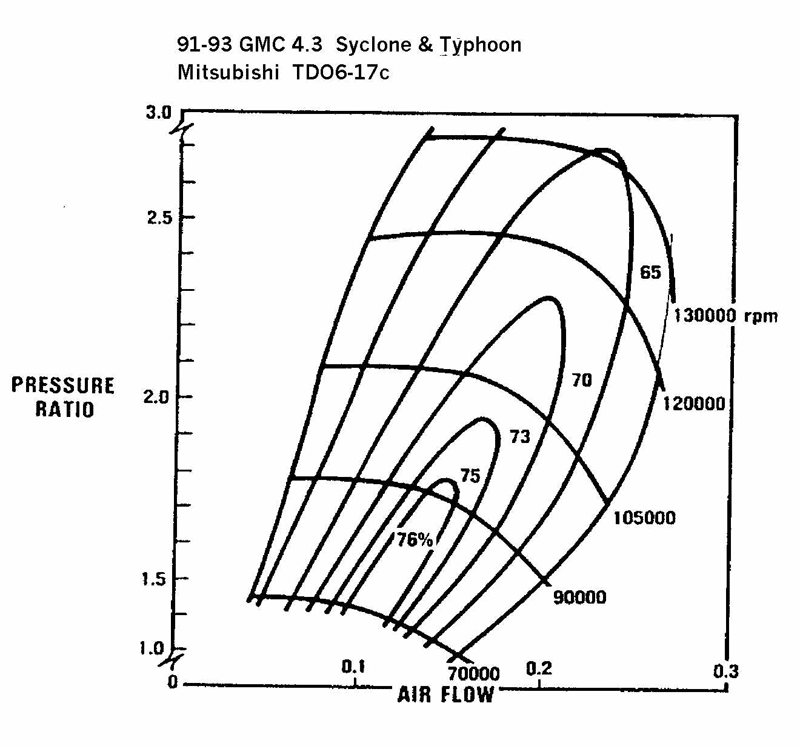

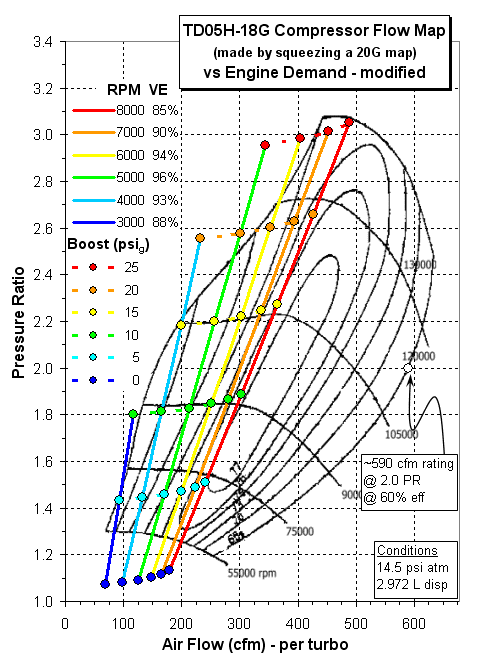

TD05h-16g large-jl, 100ve compressor TD05h-16g small-jl compressor TD05h-18g-jl compressor TD06-17C Compressor TD06-20g compressor

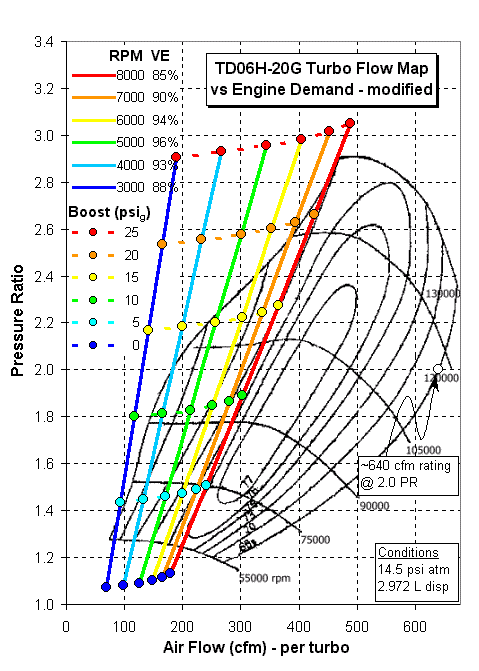

TD06-20g-jl compressor TS04 compressor

IHI:

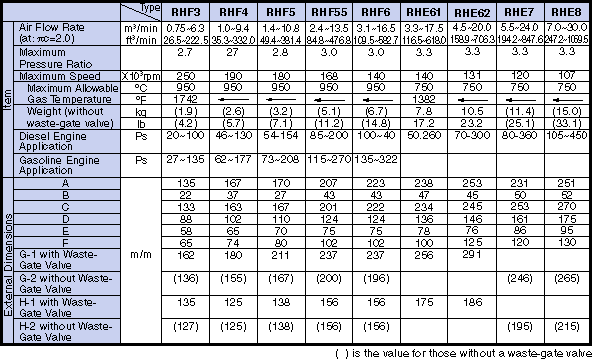

Compressor maps Specs

KKK:

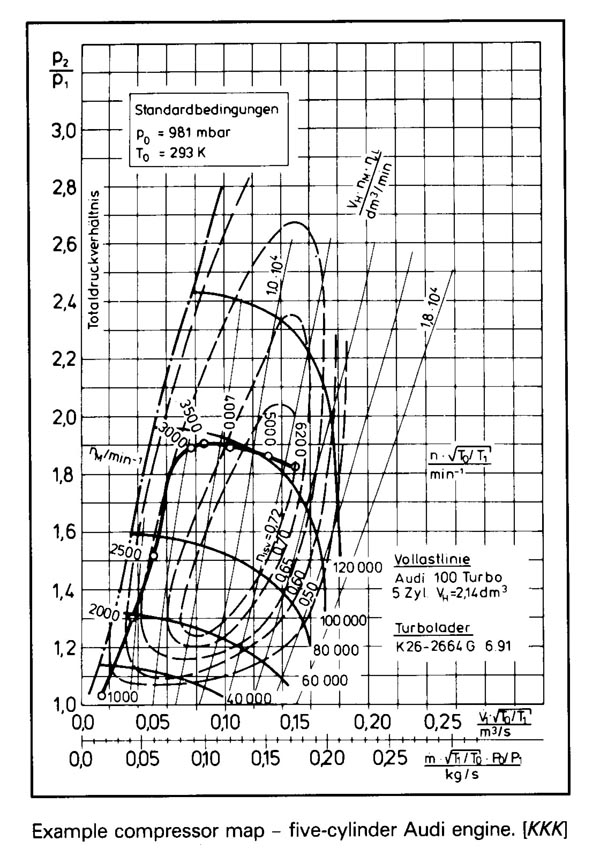

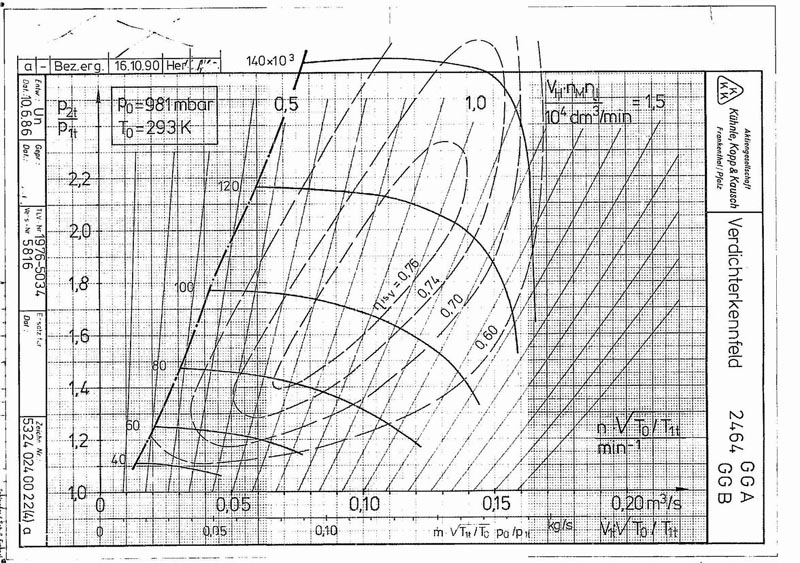

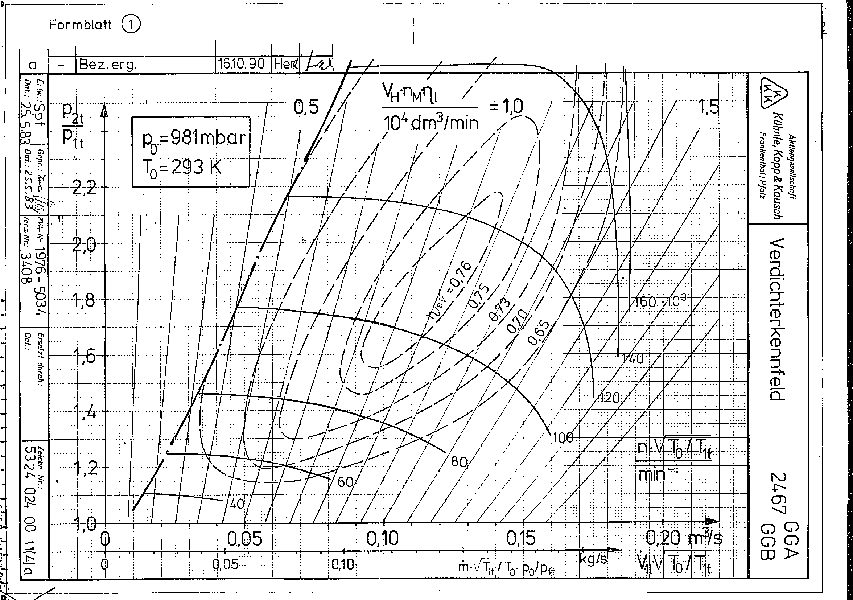

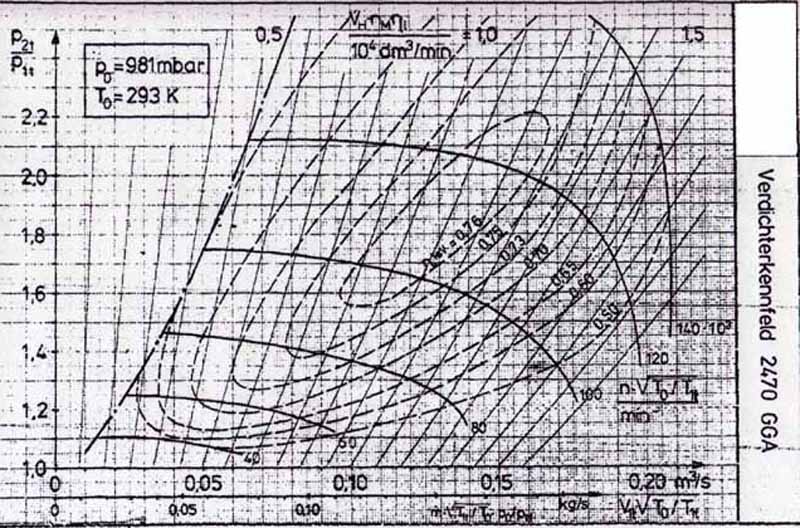

K03-2072 Compressor K14-2464 Compressor K16-2467 Compressor K24-2470 Compressor K26-2664 G Compressor K26-2470 R Compressor
